PWR/ACC Circuit Breaker, ECM Fuse & Stop-Hazard Fuse

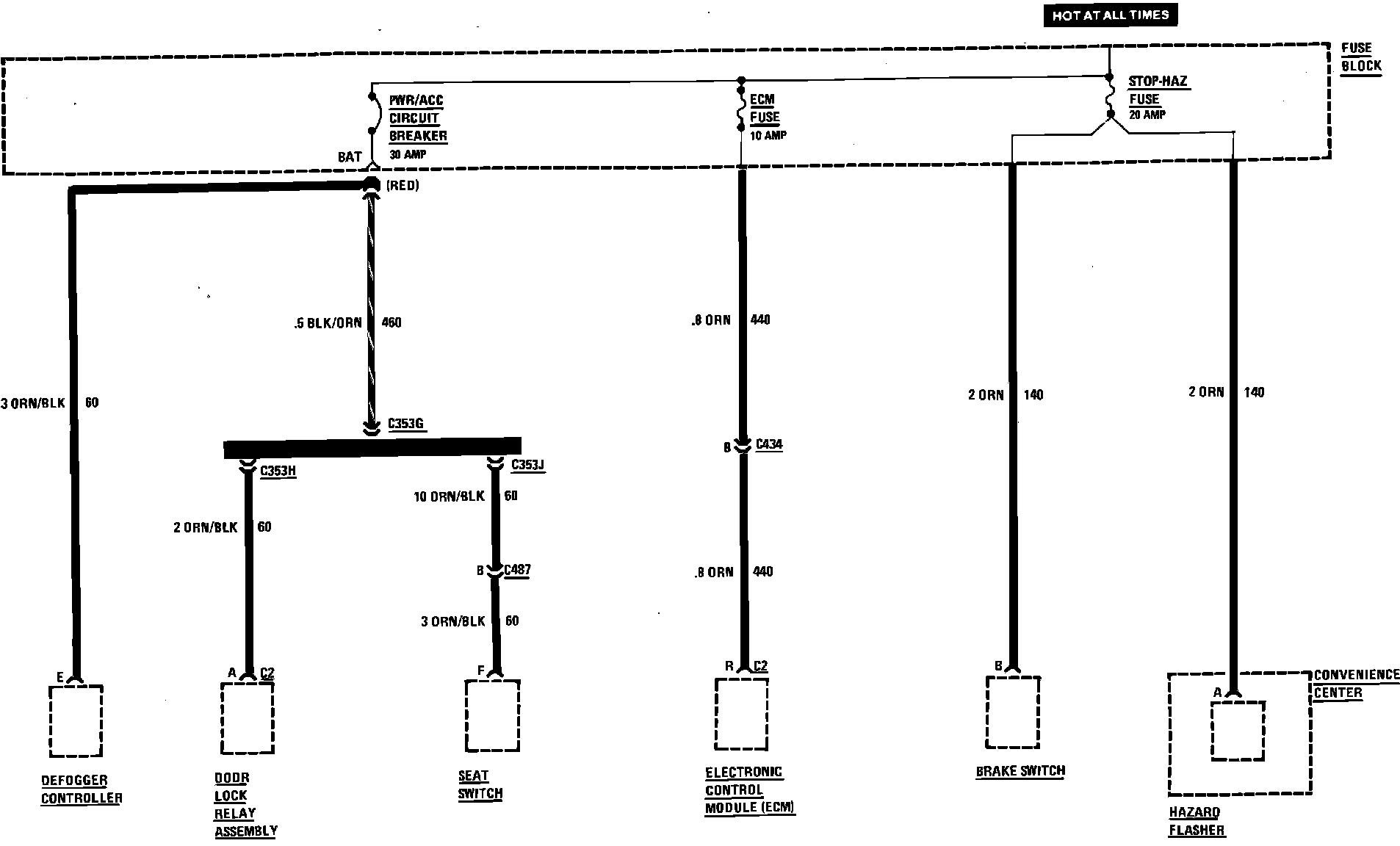

Fig. 102 Fuse Block Details (PWR/ACC Circuit Breaker, ECM Fuse & Stop-Hazard Fuse):
