System Check - Cycling Clutch Orifice Tube (CCOT)
System Check - Cycling Clutch Orifice Tube (CCOT)
Figure 9-Insufficient Cooling Diagnosis:

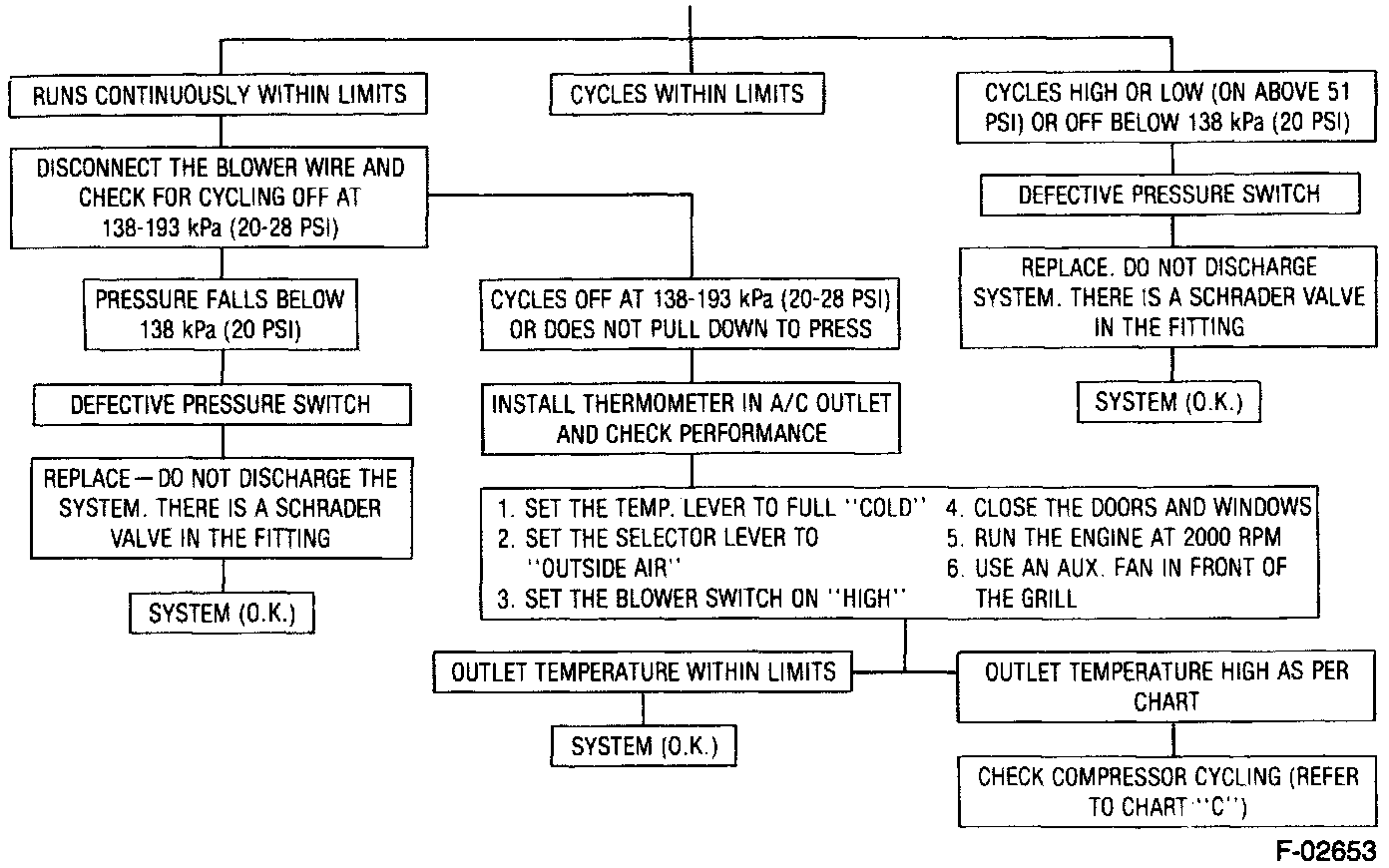

Figure 10-Insufficient Cooling Diagnosis (Continued):
