Chevy Truck
>>
1985
>>
Suburban 1/2 Ton 4WD V8-379 6.2L DSL
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Exhaust Gas Recirculation
>>
Testing and Inspection
>>
EGR Vacuum Check - Diesel Electronic Control (DEC)
EGR Vacuum Check - Diesel Electronic Control (DEC)

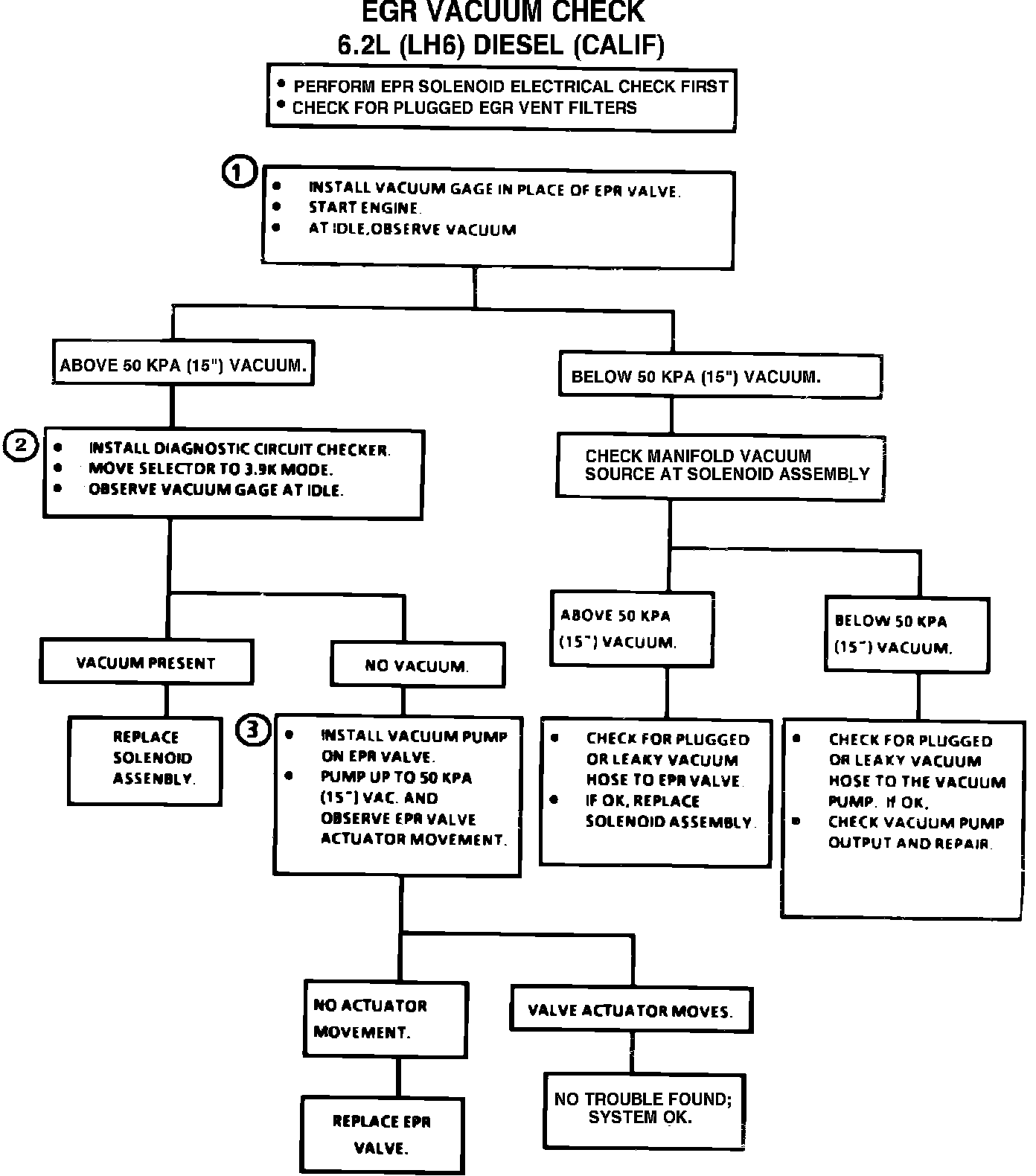

Fig. 26 EGR vacuum check. 1985:
