Chevy Truck
>>
1985
>>
Suburban 1/2 Ton 4WD V8-305 5.0L
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Transfer Case
>>
Diagrams
>>
Electrical Diagrams
>>
Automatic Transmission
Automatic Transmission

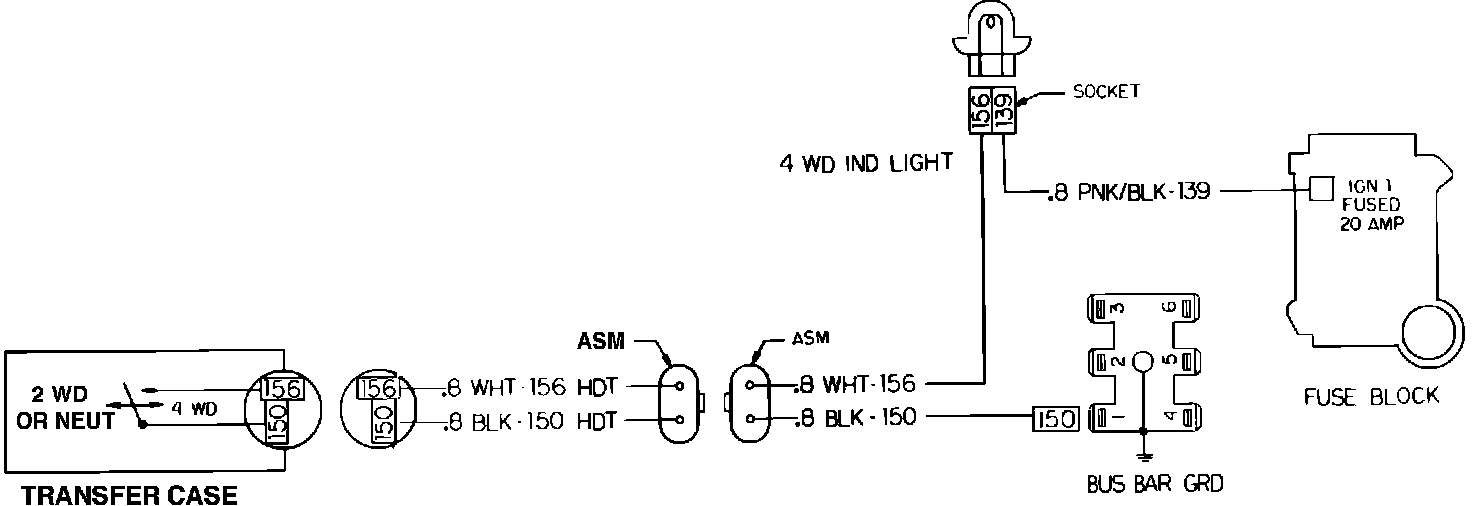

Transfer Case Wiring Circuit. Automatic Transmission:
