Chevy Truck
>>
1985
>>
K 10 P/U 4WD V8-305 5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Transmission and Drivetrain
>>
Transfer Case
>>
Manual Transmission
Manual Transmission

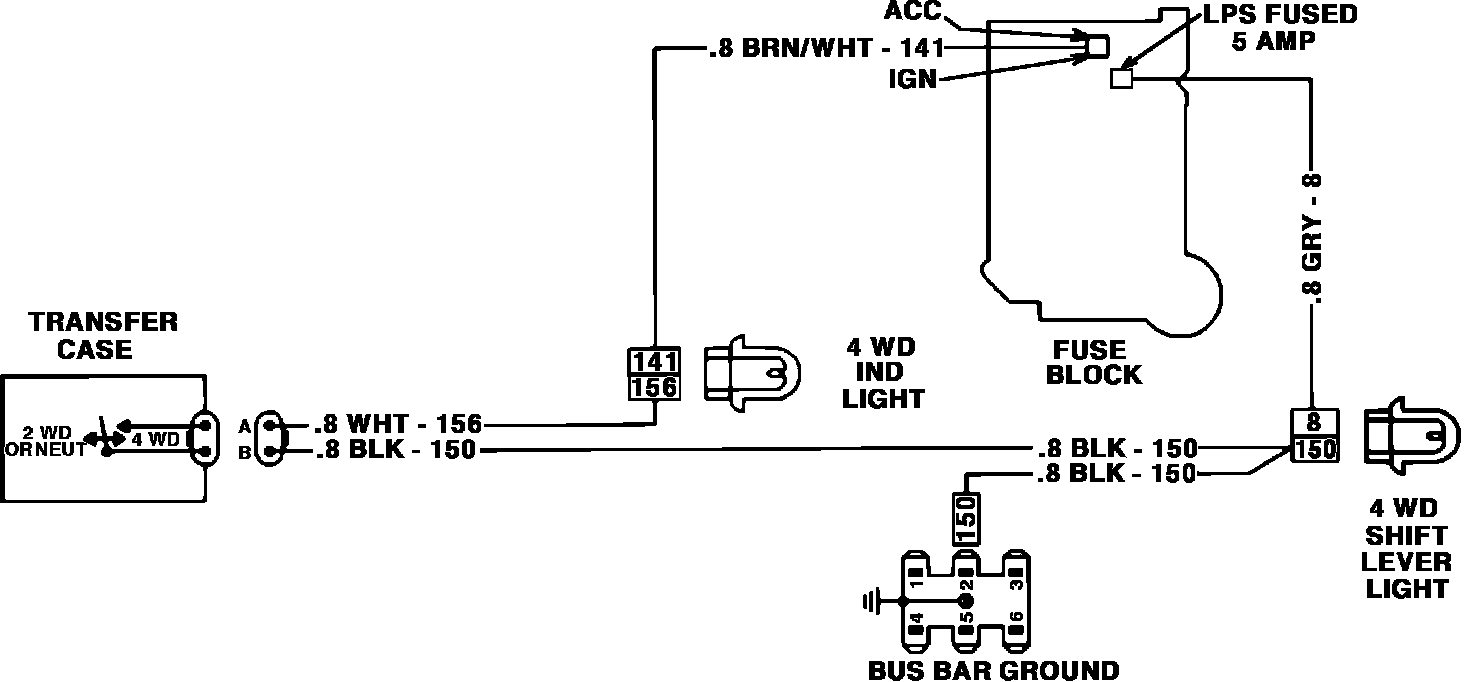

Transfer Case Wiring Circuit. Manual Transmission:
