Chevy Truck
>>
1985
>>
C 30 P/U 2WD V6-262 4.3L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Data Link Connector
>>
Locations
>>
California Emissions
California Emissions

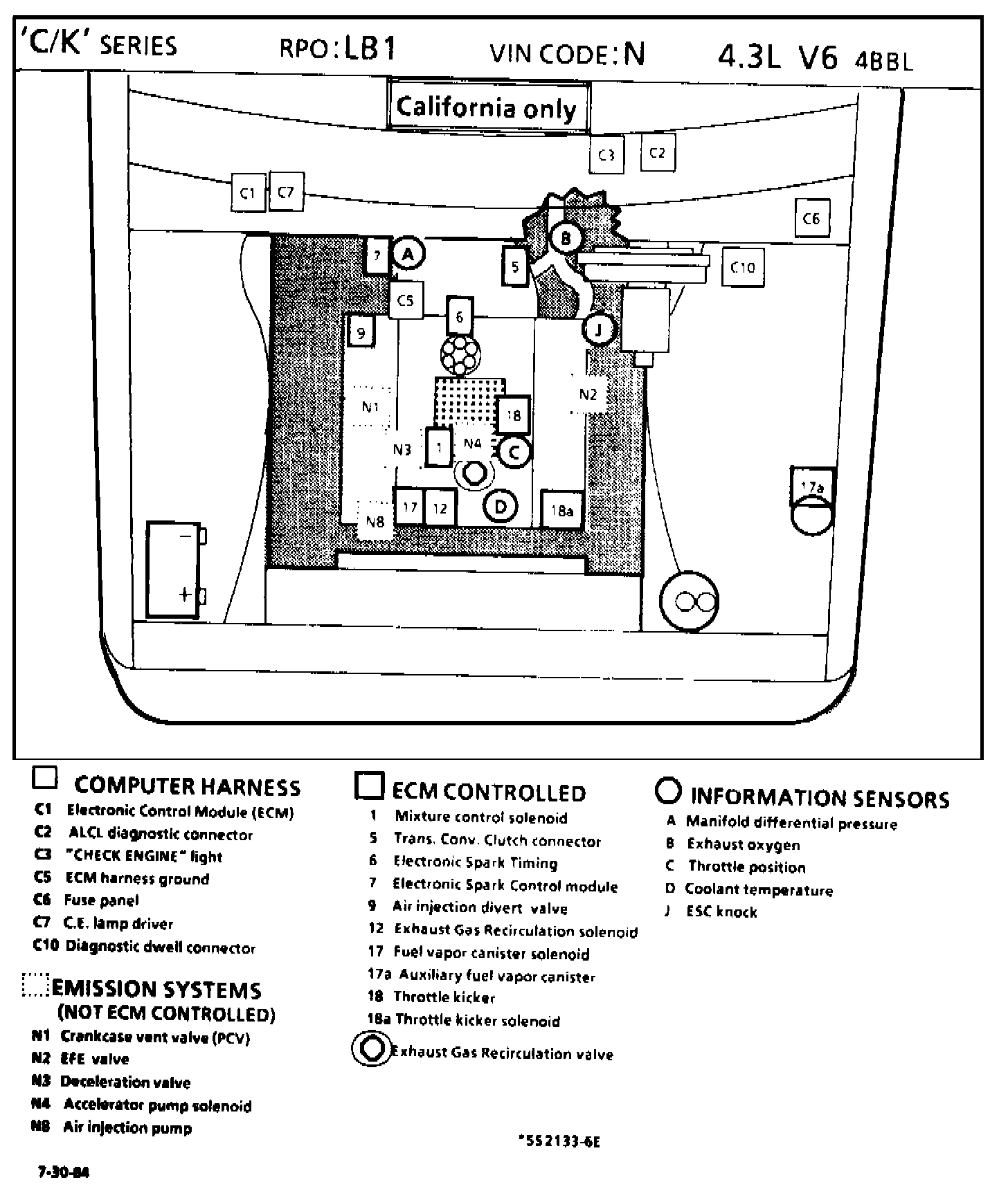

Figure 1 Component Locations - 4.3L (CK Series) - Calif.:
