S10,T10 P/U,Blazer V6-173 2.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>

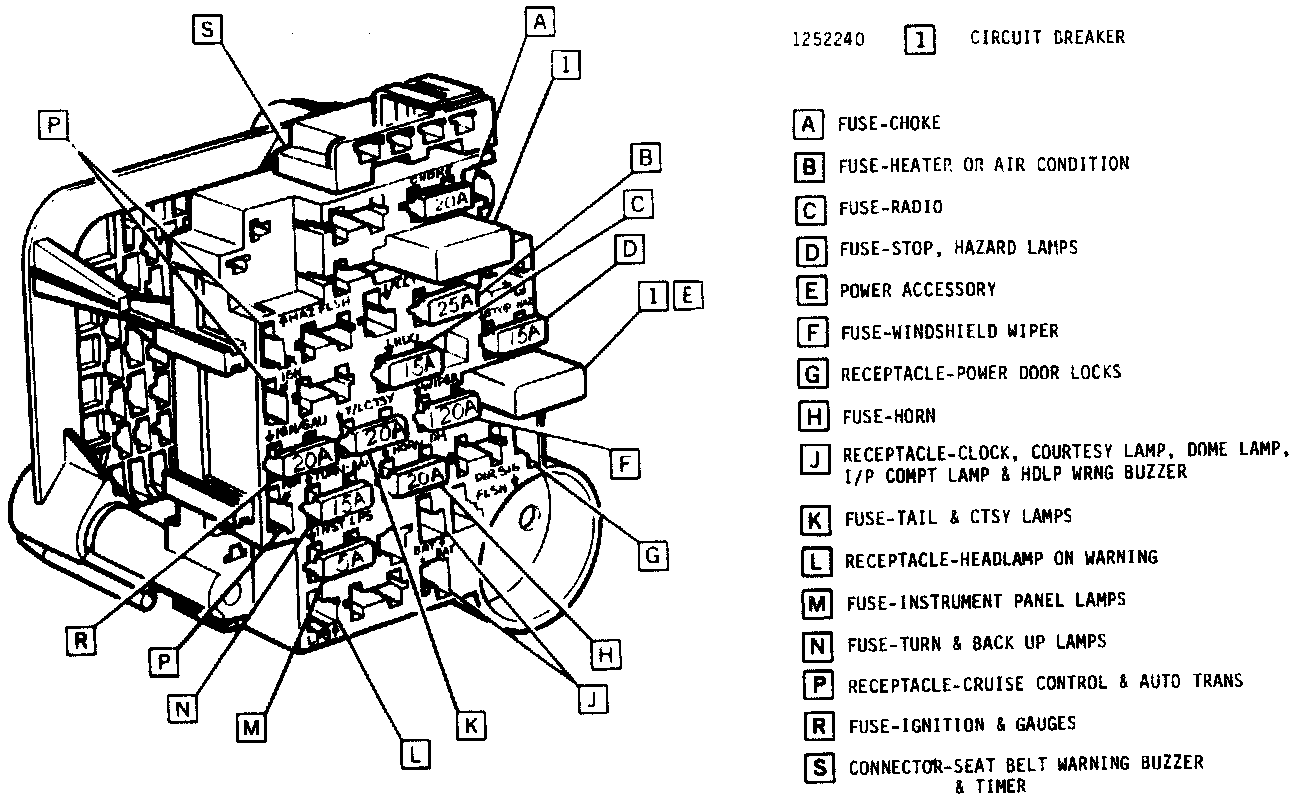

Power and Ground Distribution
Power and Ground Distribution
5 Of 17:
