Power Seat Motor Position Sensor
>>
Diagrams
>>
Seat Recline Position Sensor - Driver (A45)
Seat Recline Position Sensor - Driver (A45)

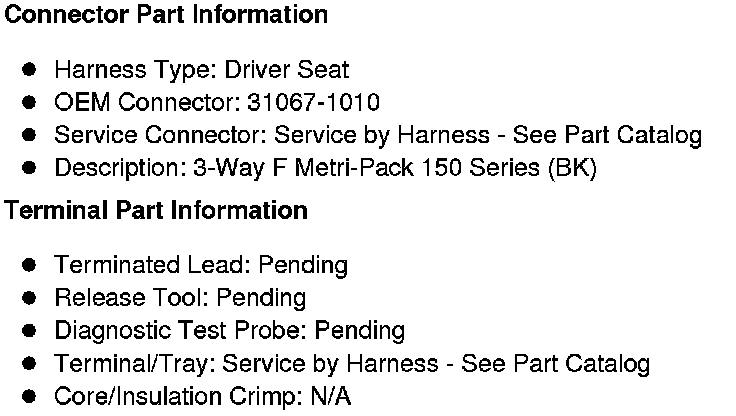

Component Connector End Views

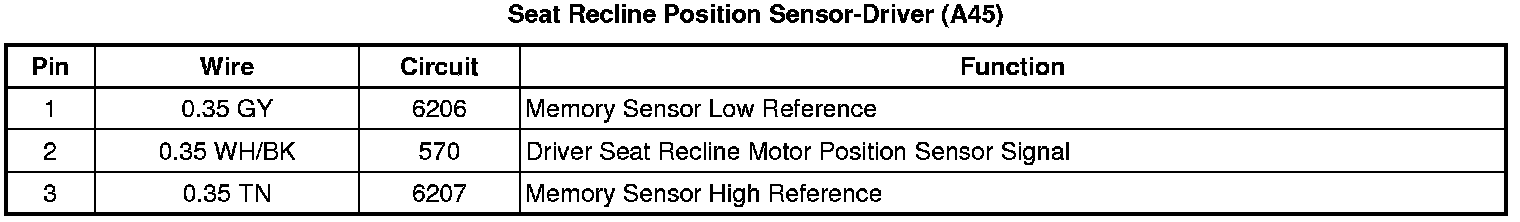

Seat Recline Position Sensor-Driver (A45)
