Seat Rear Vertical Motor - Passenger (AH8)

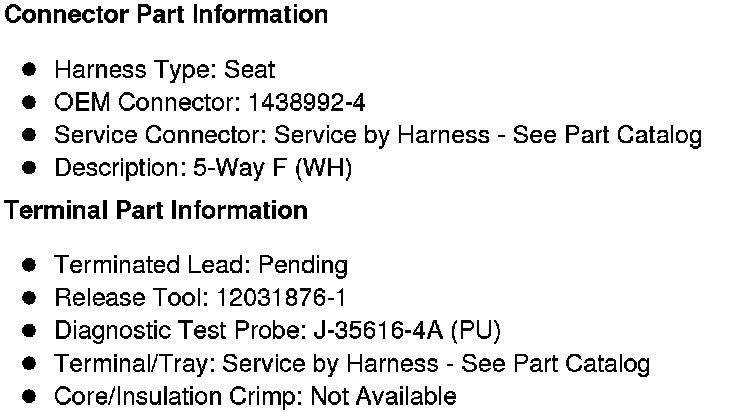

Component Connector End Views

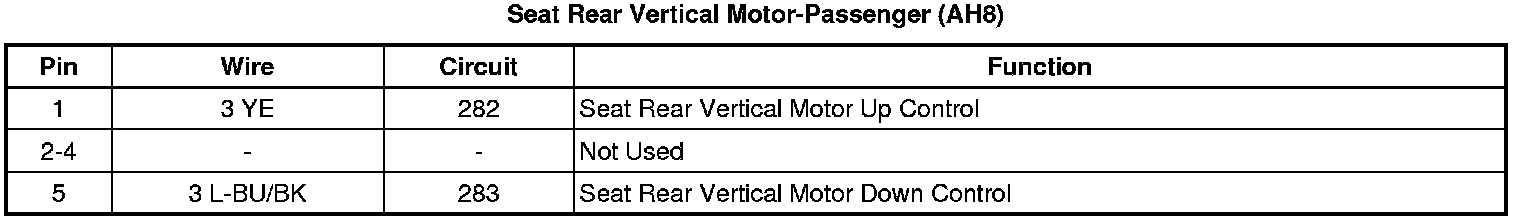

Seat Rear Vertical Motor-Passenger (AH8)
