Under Hood Fuse Block




Electrical Center Identification Views

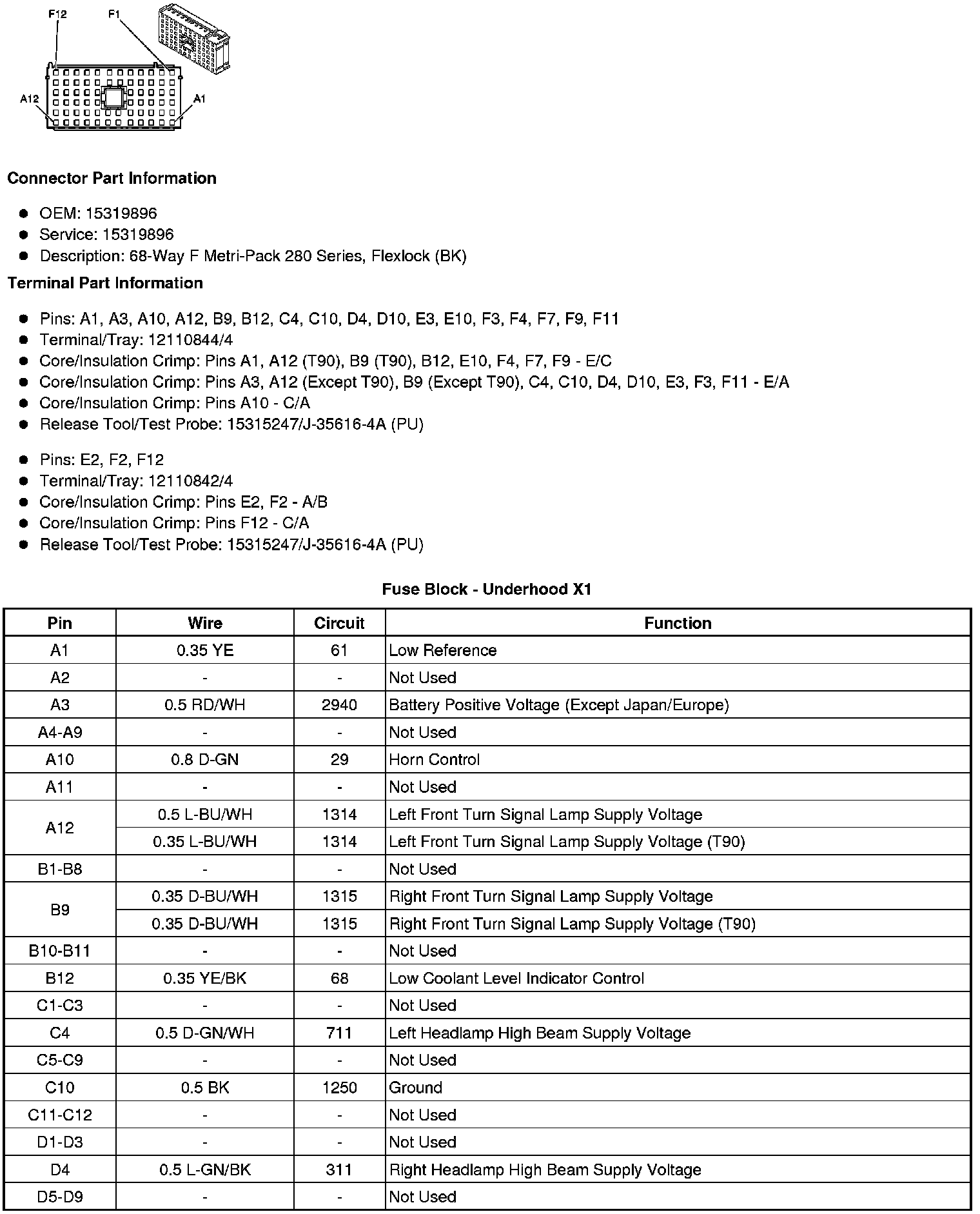

Fuse Block - Underhood X1









Fuse Block - Underhood X2













Fuse Block - Underhood X3













Fuse Block - Underhood X4
