Power Steering Pump Pulley Replacement

Power Steering Pump Pulley Replacement


Special Tools
* J 25033-C Pulley Installer
* J 25034-C Pulley Remover



Removal Procedure

1. Remove the air conditioning compressor and power steering pump belt from the power steering pump pulley. Refer to Air Conditioning Compressor and Power Steering Pump Belt Replacement (Air Conditioning Compressor and Power Steering Pump Belt Replacement) .

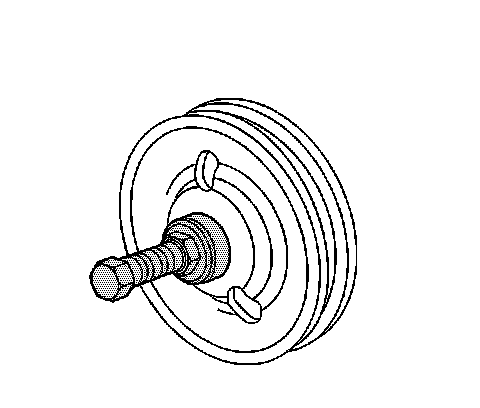

2. Use remover J 25034-C to remove the power steering pump pulley.



Installation Procedure





1. Use installer J 25033-C to install the power steering pump pulley.




2. Ensure that the axial tolerance of the power steering pump pulley on the power steering pump is within 0.25 mm (0.010 in).
3. Install the air conditioning compressor and power steering pump belt to the power steering pump pulley. Refer to Air Conditioning Compressor and Power Steering Pump Belt Replacement (Air Conditioning Compressor and Power Steering Pump Belt Replacement) .
