Home
>>
Cadillac
>>
2003
>>
Seville V8-4.6L VIN 9
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
Diagrams
>>
C300 - C346
>>
C320 In Line Connector
C320 In Line Connector

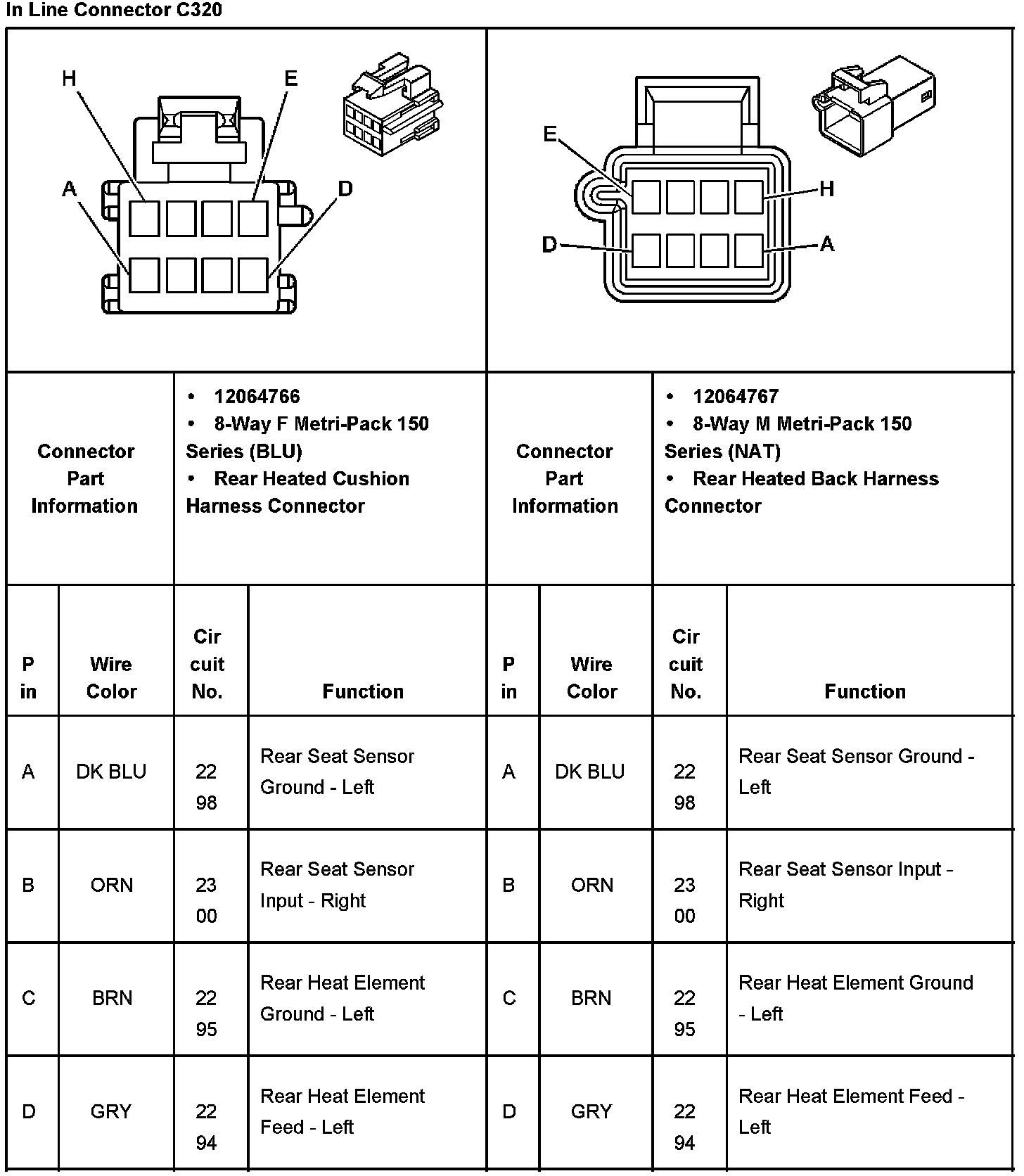

In Line Connector C320 Part 1:
In Line Connector C320 Part 2:
