System Diagram

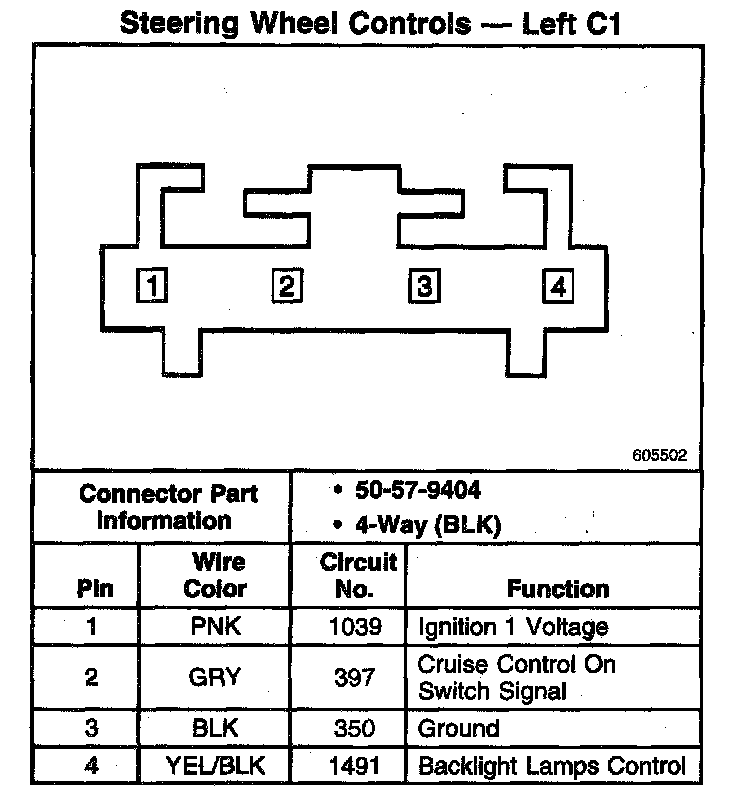

Steering Wheel Controls - Left C1:




Steering Wheel Controls - Right C1:




Steering Wheel Controls - Left C2:




Steering Wheel Controls - Right C2:
