Fuse Block - Rear C3
Fuse Block - Rear C3

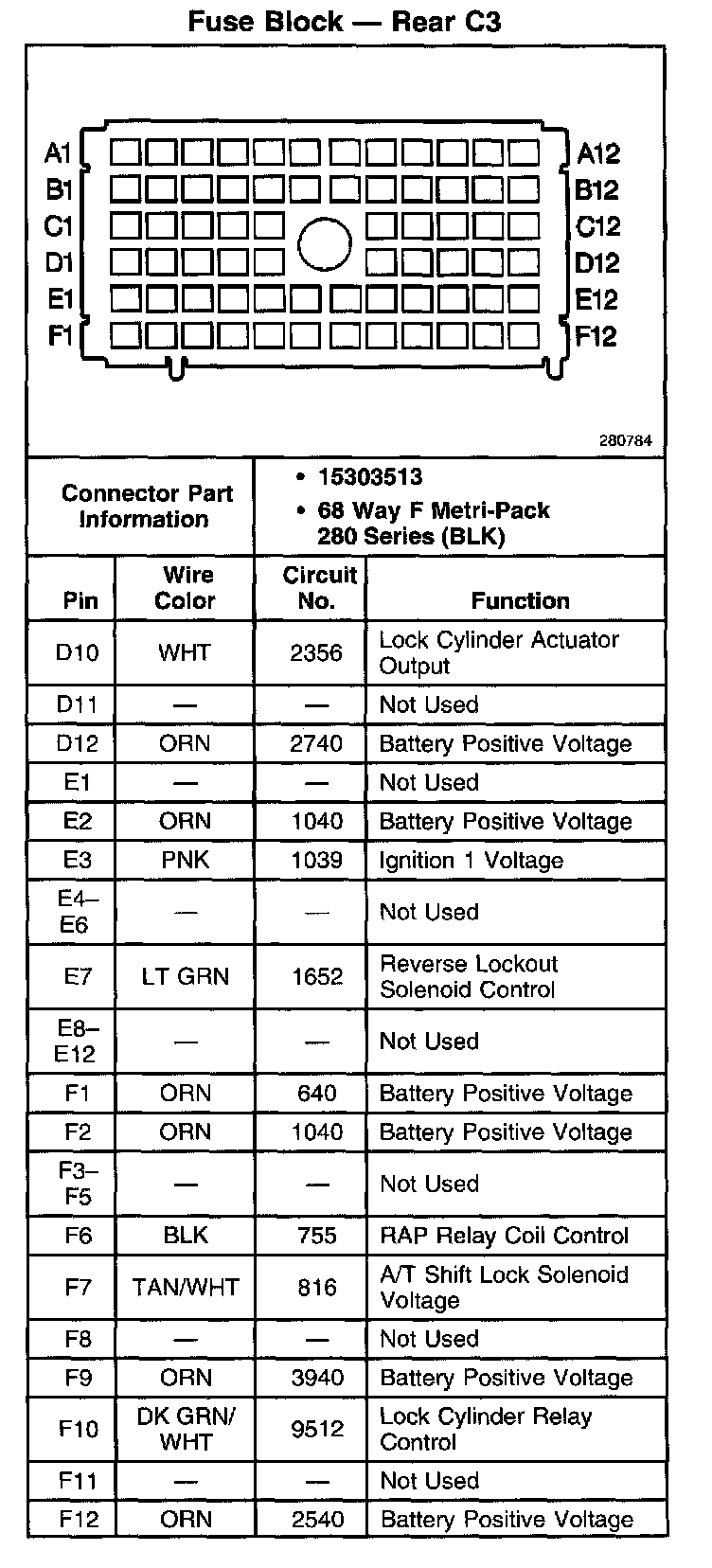

Fuse Block - Rear C3 (Part 1 Of 2):
Fuse Block - Rear C3 (Part 2 Of 2):
