Battery - Rear Fuse (Junction) Block
Battery - Rear Fuse (Junction) Block

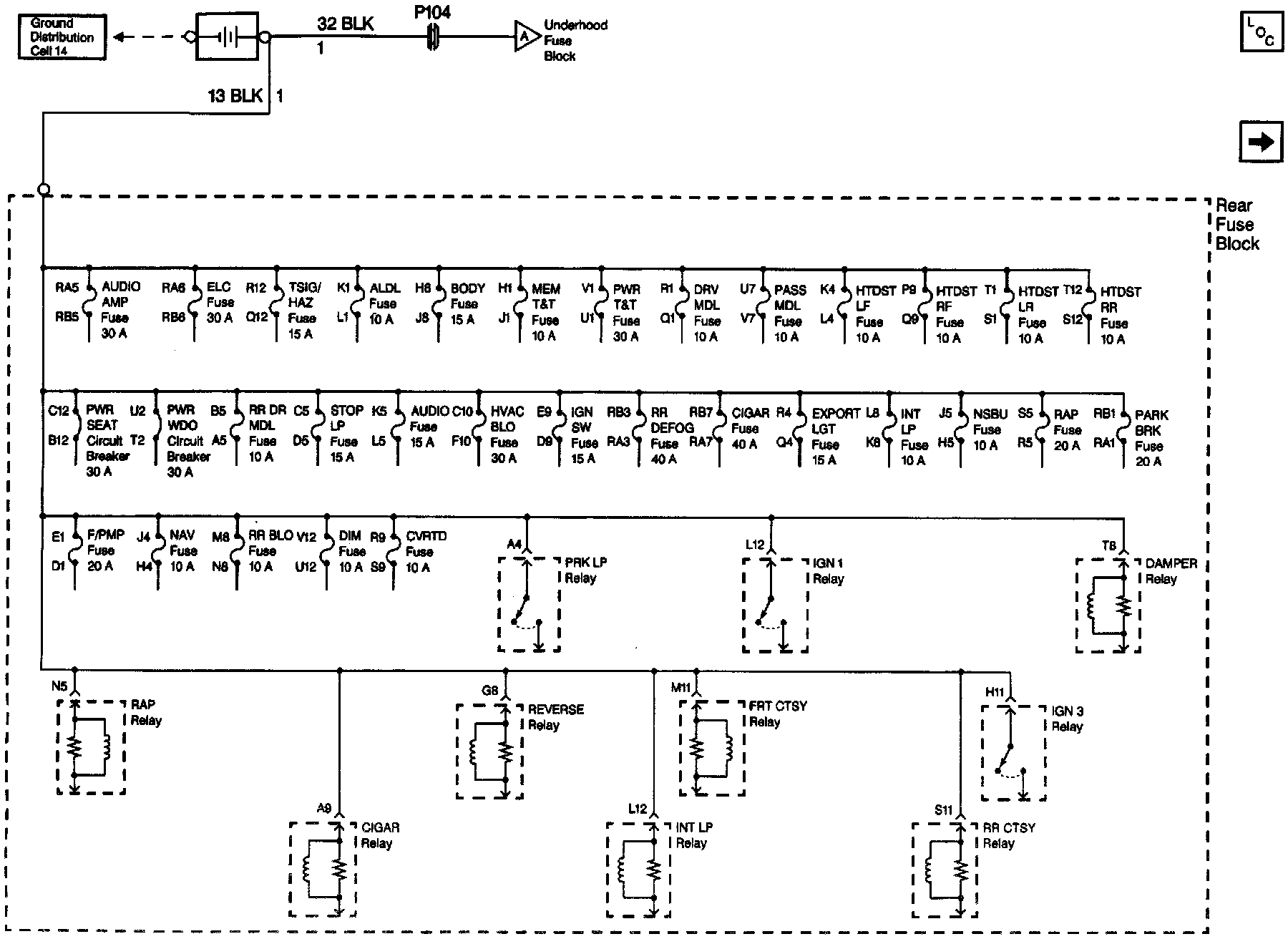

Power Distribution Schematics: Battery - Rear Fuse (Junction) Block:
