Home >> Cadillac >> 1998 >> Seville SLS V8-4.6L VIN Y >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Seats >> Memory Seats Schematics >> A45 With AL2 >> Memory Function Switch

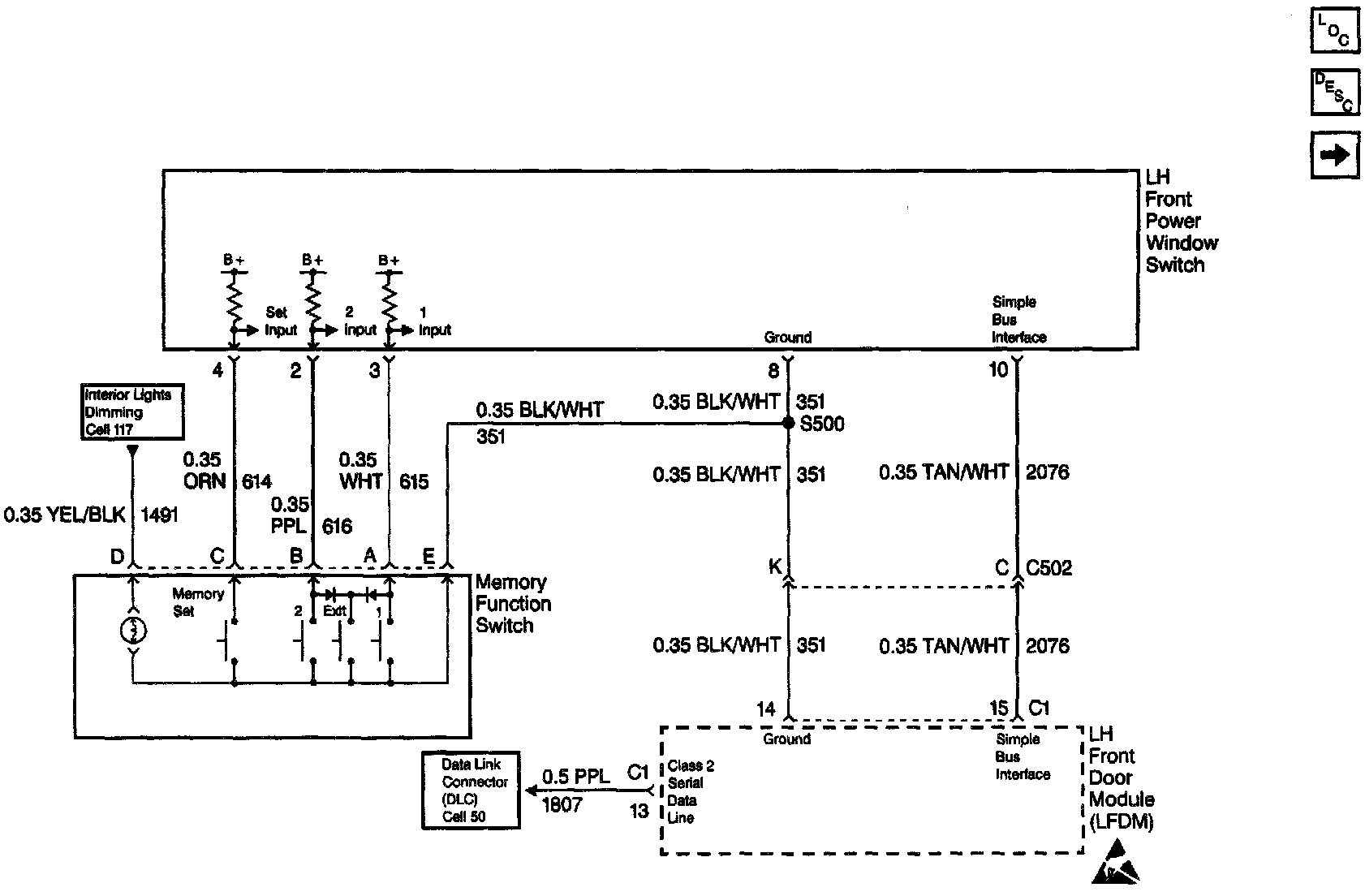

Memory Function Switch

Memory Seats Schematics (A45 with AL2): Memory Function Switch:
