Seat Replacement - Front Bucket

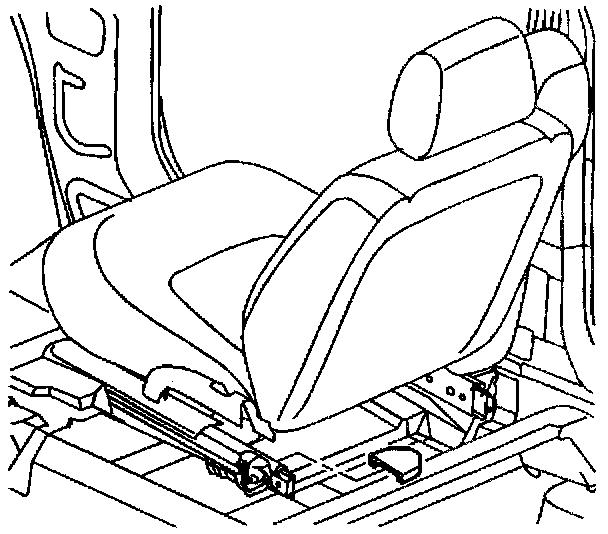

REMOVAL PROCEDURESeat Replacement - Front Bucket: Removal Procedure:
1. Disable the SIR System. Refer to Disabling the SIR System in SIR.
2. Move the seat to the full forward position.
3. Remove the seat track retainer bolt trim covers.

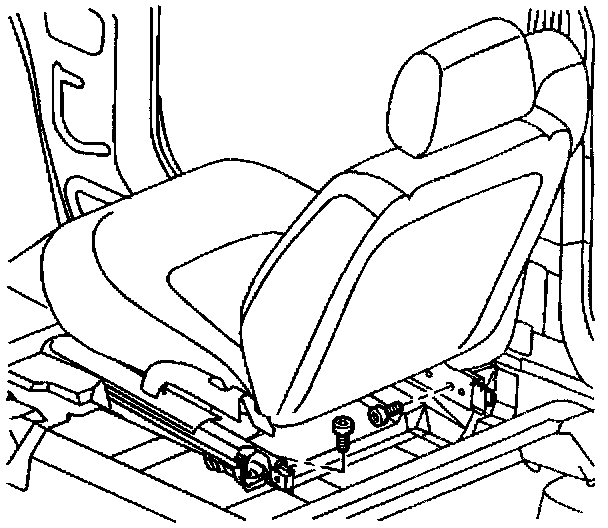

Seat Replacement - Front Bucket: Removal Procedure:
4. Remove the seat track retainer bolts.
5. Move the seat to the full rearward position.
6. Remove the front seat track cover.
7. Recline the seat back fully rearward.

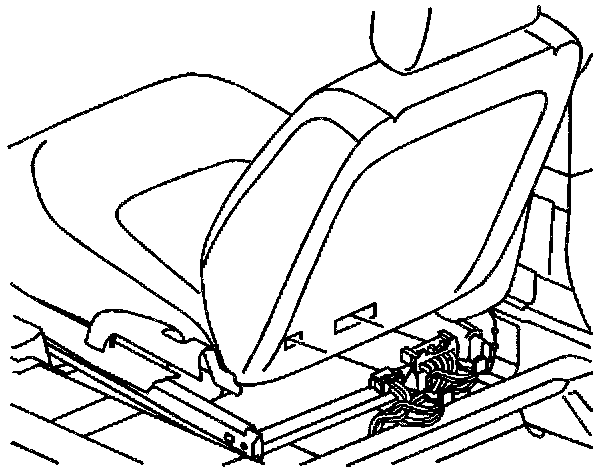

Seat Replacement - Front Bucket: Removal Procedure:
8. Tilt the seat forward and disengage the front mounting points from the floor and disconnect the electrical connectors.
9. Remove the seat from the vehicle, with aid from a helper.
INSTALLATION PROCEDURE

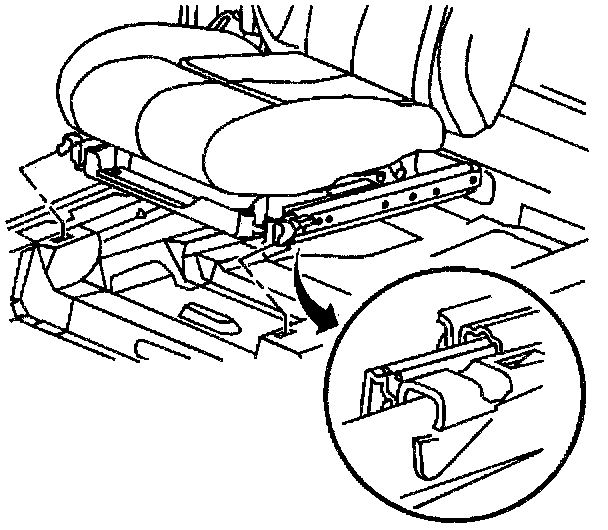

Seat Replacement - Front Bucket: Installation Procedure:
1. Install the seat into the vehicle, with aid from a helper.
2. Engage the front seat tracks into the slots in the floor pan.
Seat Replacement - Front Bucket: Installation Procedure:
3. With seat tilted forward, connect the electrical connectors.

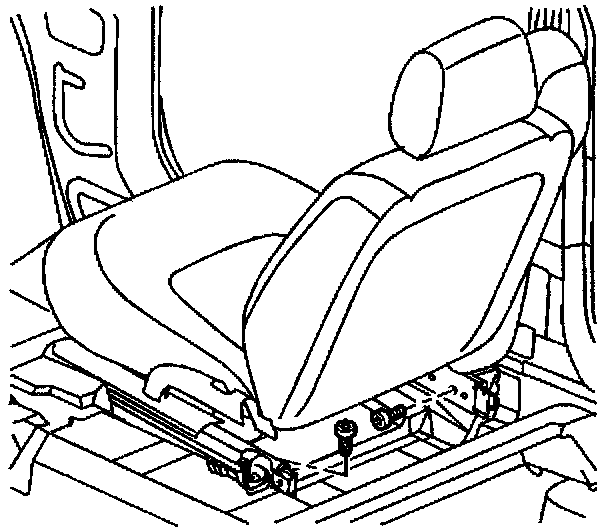

Seat Replacement - Front Bucket: Installation Procedure:
4. Lower the rear of the seat and tighten the outer bolt first, then the inner bolt.
Tighten
Tighten the seat anchor bolts to 41 N.m (30 lb ft).

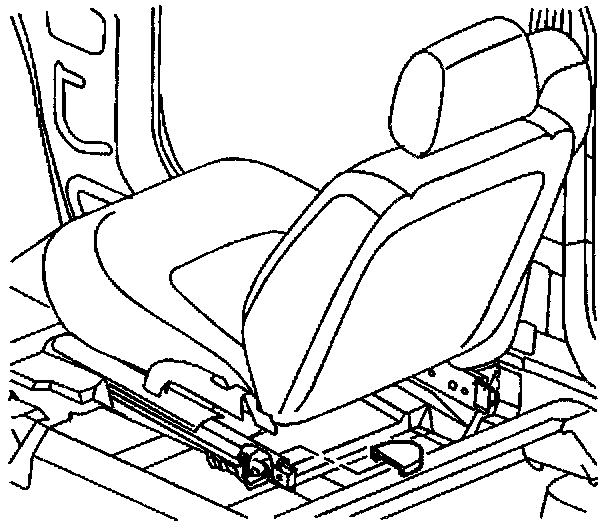

Seat Replacement - Front Bucket: Installation Procedure:
5. Install the seat track bolt trim covers.
6. Install the front seat track cover.
7. Reposition the seat.
8. Enable the SIR System. Refer to Enabling the SIR System in SIR.
