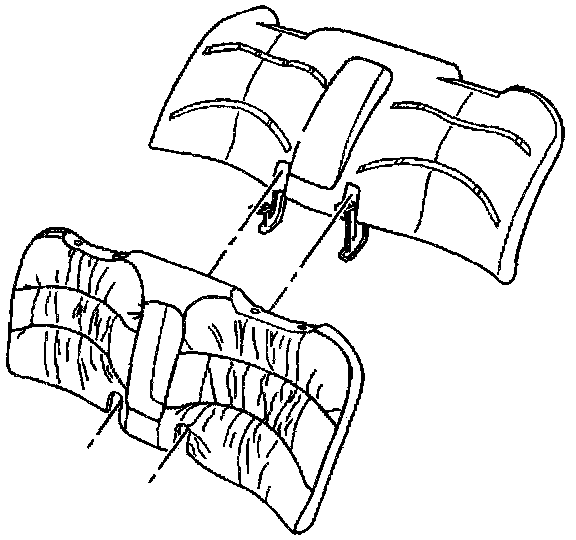

Seat Back Cover and Pad Replacement - Rear
REMOVAL PROCEDURESeat Back Cover and Pad Replacement - Rear: Removal Procedure:
1. Remove the seat back.
2. Remove the pass-through pocket.
3. Remove the hog rings retaining the seat back cover to the seat frame.
4. Gently pull the seat back cover and cushion from the frame.
INSTALLATION PROCEDURE
Seat Back Cover and Pad Replacement - Rear: Installation Procedure:
1. Position foam cushion on the frame.
2. Press the seams down to engage the hook and loop.
3. Work the cover edges over the foam cushion
4. Install the hog rings to retain the cover.
5. Install the pass-through pocket to the seat back.
6. Install the seat back.
