Seat Adjuster Replacement - Front

REMOVAL PROCEDURE

Seat Adjuster Replacement - Front: Removal Procedure:

1. Disable the SIR system. Refer to Disabling the SIR System in SIR.

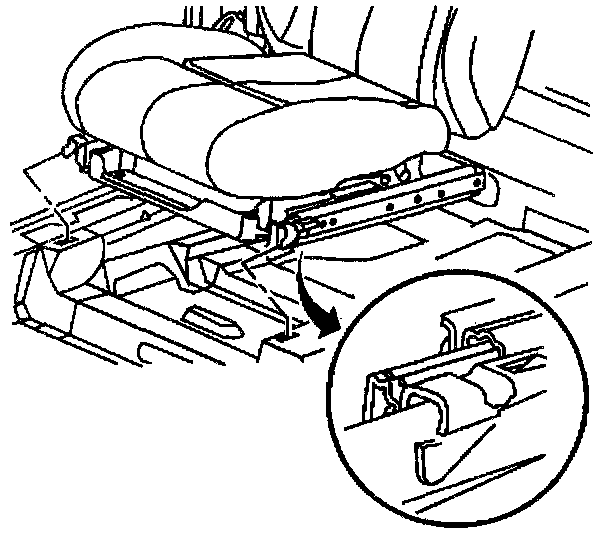

2. Remove the front bucket seat.
3. Remove the front seat cushion frame
4. Remove the seat back frame.

INSTALLATION PROCEDURE

Seat Adjuster Replacement - Front: Installation Procedure:

1. Transfer any remaining seat components to the new adjuster frame (lower retractor, wiring, and clips).
2. Install the front seat cushion frame.
3. Install the seat back frame.
4. Install the front bucket seat.
5. Enable the SIR system. Refer to Enabling the SIR System in SIR.
