Lumbar Component Replacement - Power (Motor Replacement (AC9))

REMOVAL PROCEDURE

Lumbar Component Replacement - Power (Motor Replacement (AC9)): Removal Procedure:

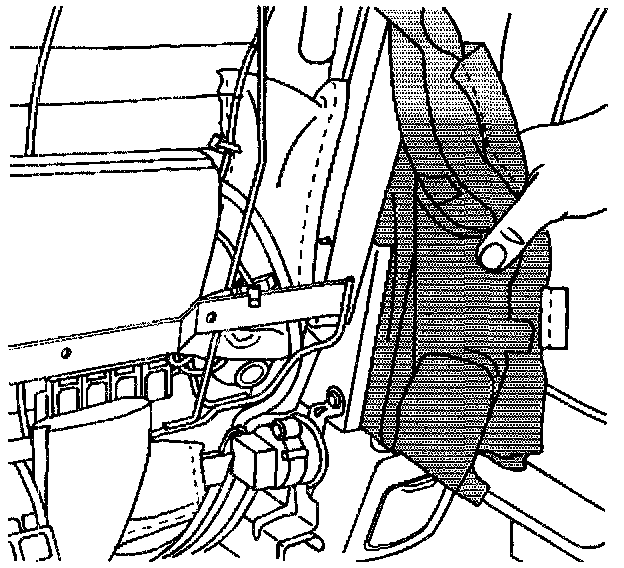

1. Remove the seat back trim cover.
2. Remove the seat cover J channels from the seat back frame as necessary to access motor.
3. Remove the electrical connector and air line from the pump motor assembly.
4. Remove the hog rings retaining bag and motor assembly to the wire seat back frame.
5. Remove the bag and motor assembly.

INSTALLATION PROCEDURE

Lumbar Component Replacement - Power (Motor Replacement (AC9)): Installation Procedure:

1. Secure bag and pump motor assembly to the seat back frame with hog rings.
2. Connect the pump motor electrical connector and air line.

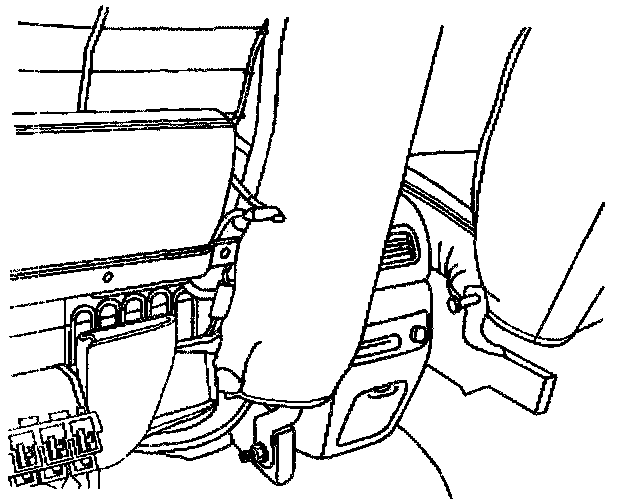

Lumbar Component Replacement - Power (Motor Replacement (AC9)): Installation Procedure:

3. Install the seat cover J channels to seat back frame.
4. Install the seat back trim cover.
