Drive Cable Replacement - Horizontal and Vertical
REMOVAL PROCEDUREDrive Cable Replacement - Horizontal and Vertical: Removal Procedure:
1. Disable the SIR system. Refer to Disabling the SIR System in SIR.
2. Remove the front bucket seat.
3. Remove the seat cushion frame.
4. If the cable is equipped with a position sensor, remove the sensor retention clip and disconnect the electrical connector.

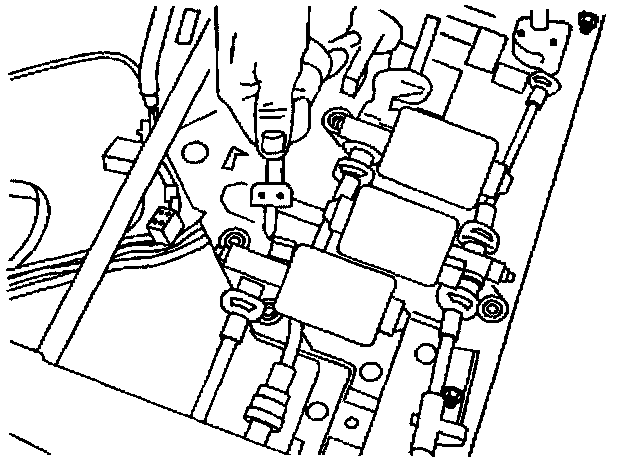

5. Squeeze the collar of the cable to release it.
Drive Cable Replacement - Horizontal and Vertical: Removal Procedure:

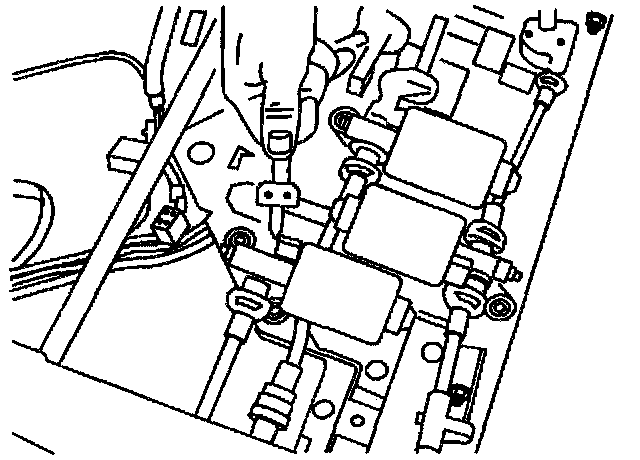

6. Pull the cable out of the fitting until the cable end clears the fitting.
7. Remove the cable or cable/sensor assembly.
INSTALLATION PROCEDURE
Drive Cable Replacement - Horizontal and Vertical: Installation Procedure:
1. Install the cable or cable/sensor assembly by pushing the ends into the fittings until the clip snaps into place.
2. If the cable is equipped with a position sensor, install the sensor retention clip and connect the electrical connector.
3. Install the seat cushion frame.
4. Install the front bucket seat.
5. Enable the SIR system. Refer to Enabling the SIR System in SIR.
