Seville SLS V8-4.6L VIN Y
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Diagrams
>>
Electrical Diagrams
>>
Memory Seats Schematics
>>
A45 With AC9
>>
Recline, Headset Motors and Position Sensors, Class 2
Recline, Headset Motors and Position Sensors, Class 2

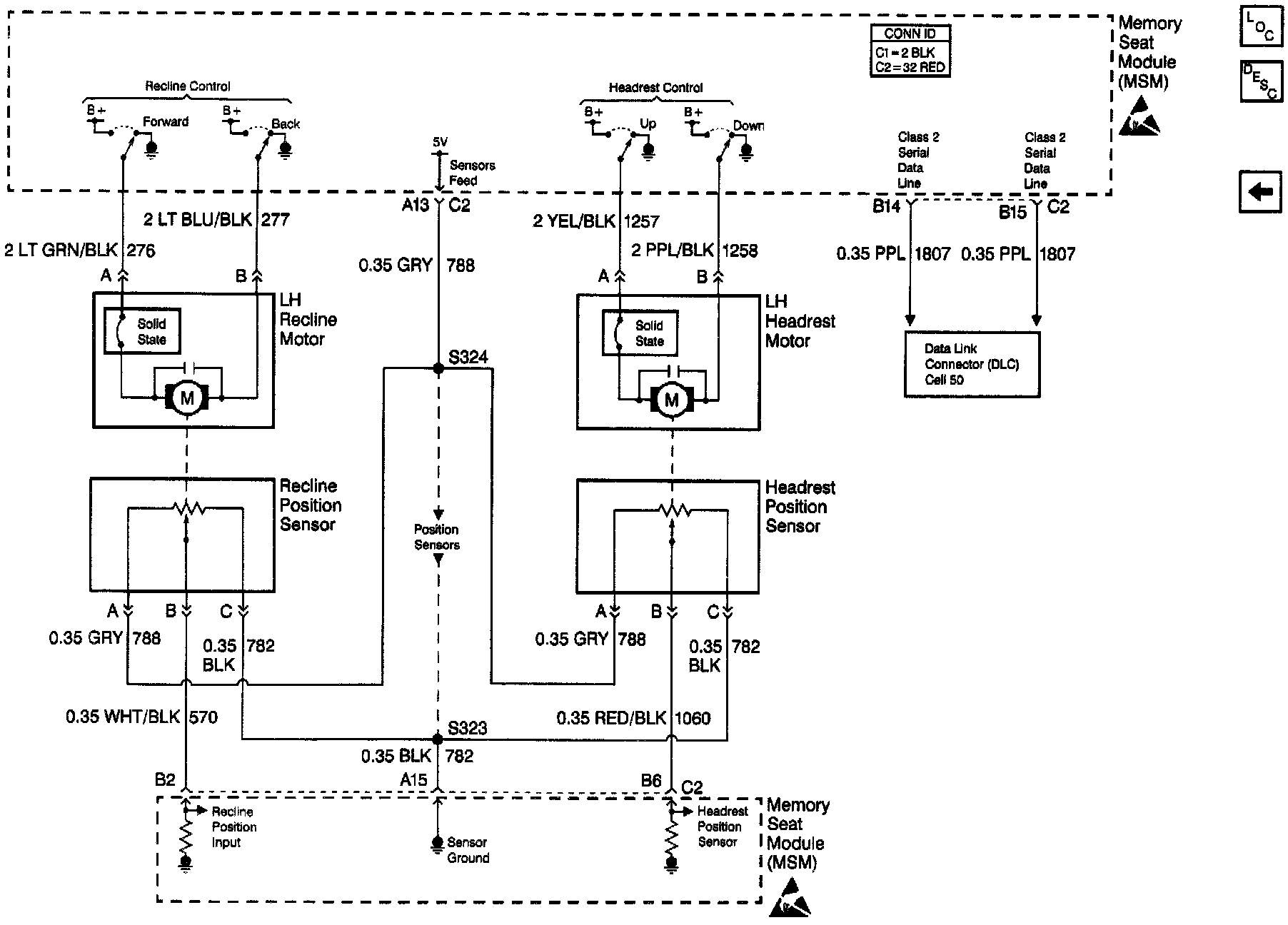

Memory Seats Schematics (A45 with AC9): Recline, Headset Motors And Position Sensors, Class 2:
