Forward Body Mount Replacement

REMOVAL PROCEDURE
1. Raise the vehicle and suitably support.
2. Remove wheels and tires.

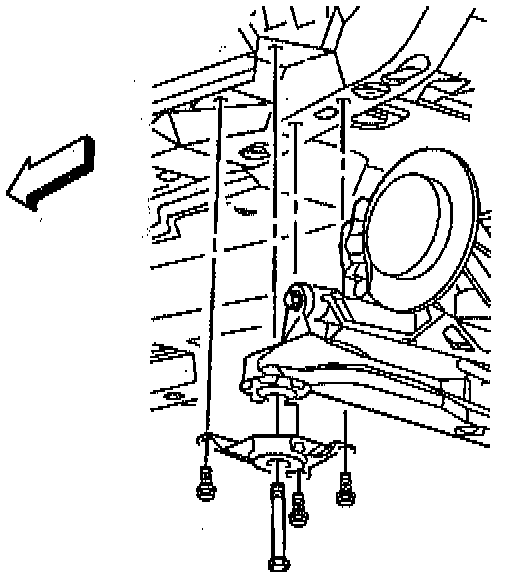

3. Remove the exhaust system. Refer to EXHAUST SYSTEM Replacement.
4. Support forward end of the rear suspension support with a suitable jack.
5. Remove the forward body mount brackets at the support assembly.





6. Remove the two bolts securing the front of the support assembly to the vehicle.
7. Lower the jack to allow the front end of the support assembly to lower enough to allow for removal of the mounts.





8. Using a punch, bend the tabs on the mount inboard (1) and then tap the mount downward and out of the support assembly.

INSTALLATION PROCEDURE





1. Tap the mount into the support assembly ensuring the flat is outboard (2) and the notch (1) is rearward upon the installation.
2. Bend the tabs outboard with a large pair of pliers.
3. Raise the support assembly to the body of the vehicle.

NOTICE: Always use the correct fastener in the proper location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.





4. Install two bolts securing the front of the support assembly to the vehicle body.

Tighten the bolts to 191 Nm (141 ft. lbs.).

5. Install the brackets to body at the support assembly forward mounts.

Tighten body bracket bolts to 86 Nm (63 ft. lbs.).

6. Install the exhaust system. Refer to EXHAUST SYSTEM Replacement.
7. Install the wheels and tires.

Tighten the wheel nuts to 140 Nm (100 ft. lbs.).

8. Lower the vehicle.
