Camshaft Cover Replacement (Right)

Removal Procedure

1. Disconnect the negative battery cable.
2. Raise the vehicle.
3. Disconnect the exhaust manifold rear pipe at the converter. Position the converter out of the way.
4. Lower the vehicle.
5. Remove the tower-to-tower brace.
6. Disconnect the four DIS wiring connectors and four mounting bolts.






7. Remove the DIS and right bank spark plug wires.
8. Disconnect the PCV Valve.
9. Remove the purge canister solenoid from the rear of the cover one screw.
10. Remove the three screws securing the wiring harness to the cover.
11. Remove the cam cover screws.
12. Support the front of the engine cradle.
13. Remove the two mounting screws at the front of the cradle.
14. Remove the right and left torque nuts.
15. Lower the engine cradle for (or raise the vehicle) to provide clearance at the rear of the engine compartment.

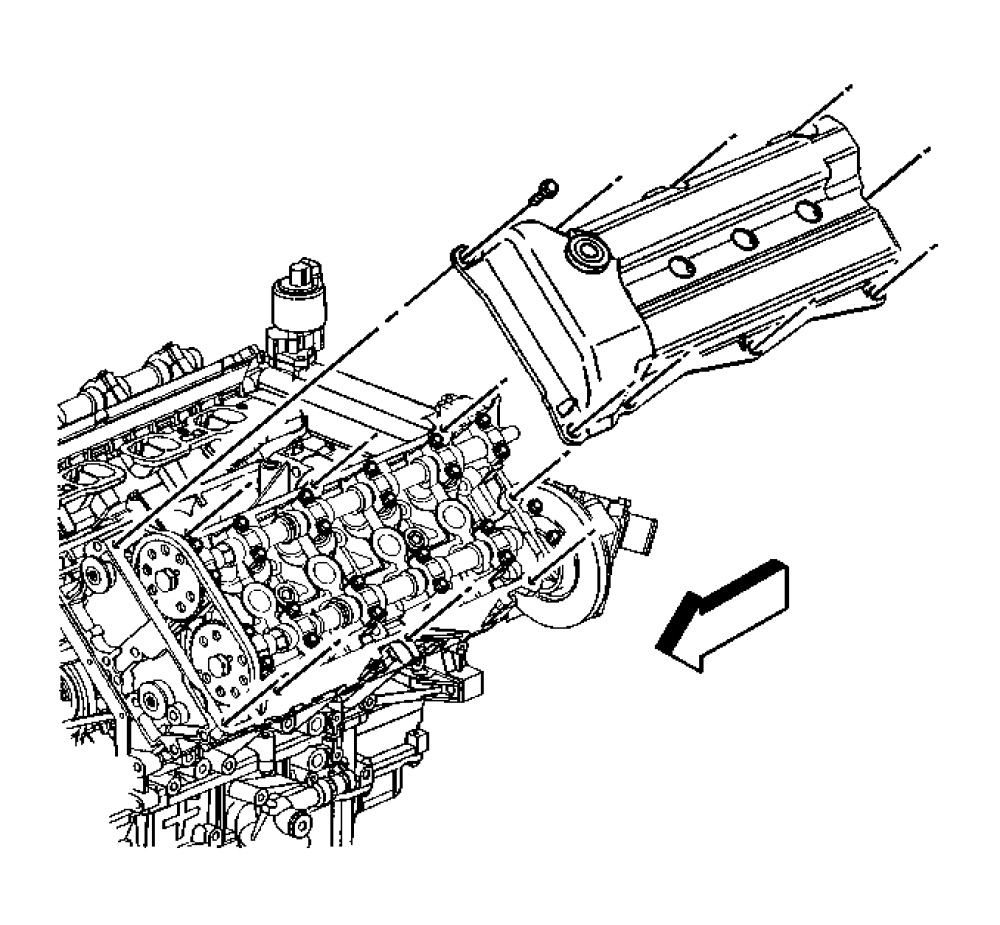

16. Remove the cam cover.
17. Discard the cover seal if it is damaged or if it was pulled from the groove in the cover during removal. Reuse the spark plug seals if undamaged.

Installation Procedure






1. Install the spark plug and cam cover seals as required.
2. Install the cam cover.
3. Install the cover screws.

Tighten
Tighten the screws to 10 Nm (89 lb in).


Notice: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

4. Raise the engine cradle into position and install two mounting bolts.

Tighten
Tighten the bolts to 100 Nm (74 lb ft).

5. Install the right and left torque struts. Adjust to provide zero preload as described in this section. Refer to Engine Mount Strut Replacement.
6. Secure the wiring harness to the cam cover with three screws.
7. Secure the purge canister solenoid with one screw.
8. Connect the PCV valve.






9. Install the spark plug wires and secure the DIS to the cam cover with four screws.
10. Connect the DIS electrical connectors.
11. Install the tower-to-tower brace.
12. Raise the vehicle.
13. Connect the Exhaust Manifold Rear Pipe to the catalytic converter with two bolts.

Tighten
Tighten the bolts to 25 Nm (18 lb ft).

14. Connect the negative battery cable.
