Traction Control Module

Electronic Brake And Traction Control Module (EBTCM) (L26):

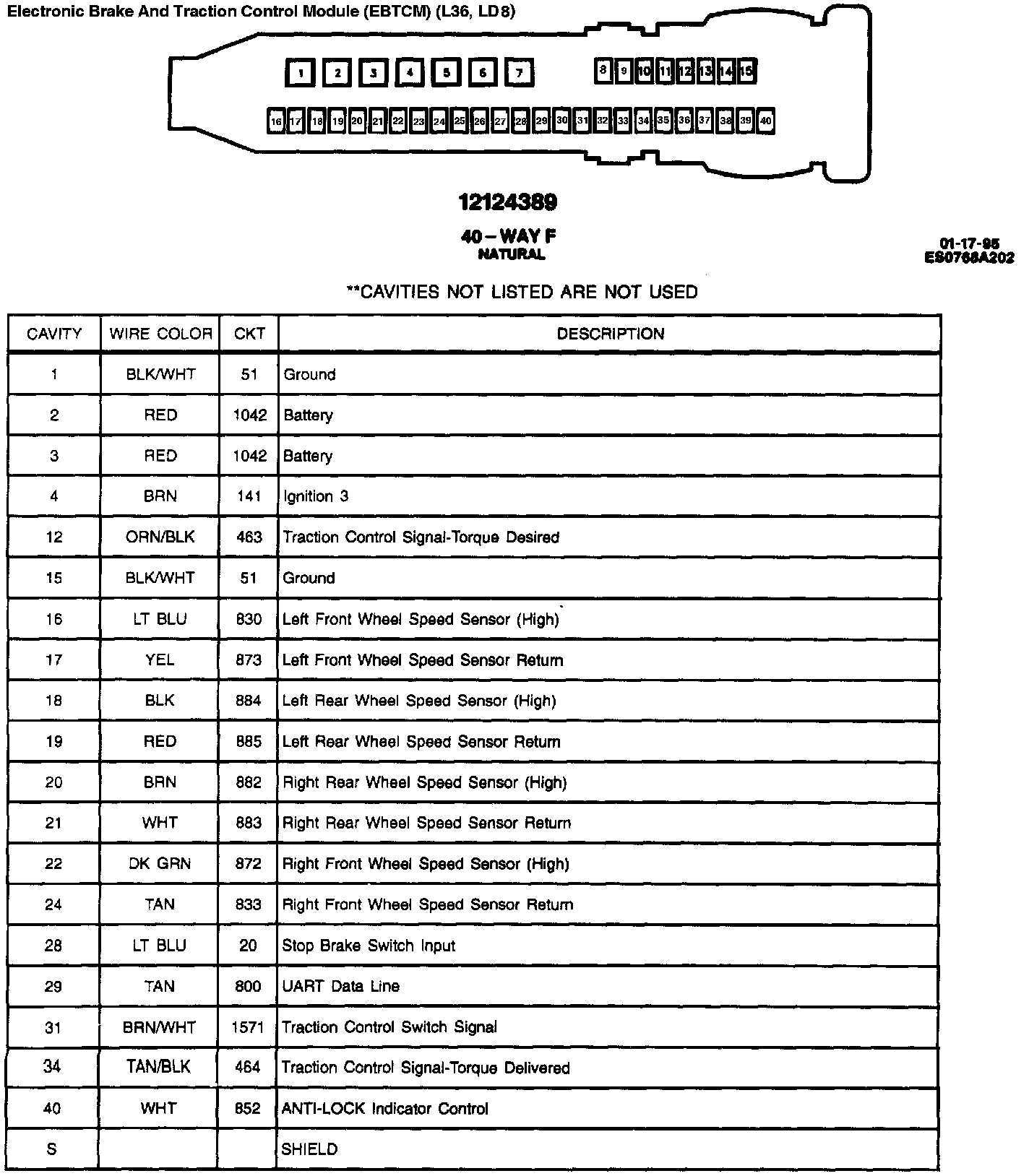

Electronic Brake And Traction Control Module (EBTCM) (L36, LD8):
