Home >> Cadillac >> 1994 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Restraints and Safety Systems >> Relays and Modules - Restraints and Safety Systems >> Air Bag Control Module >> Diagrams

Air Bag Control Module: Diagrams

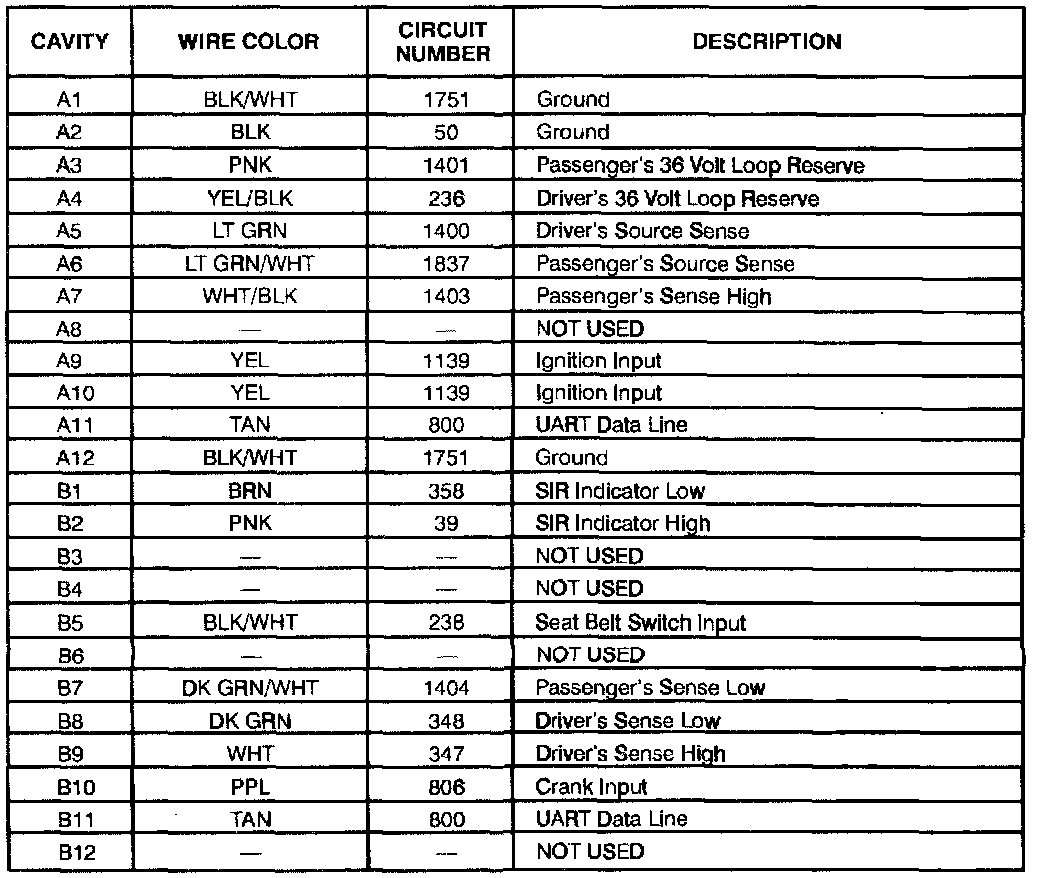

Diagnostic/Energy Reserve Module (DERM):



Diagnostic/Energy Reserve Module (DERM):
