Operation CHARM
: Car repair manuals for everyone.
Hosted by
mcallihan.com
Home
>>
Cadillac
>>
1990
>>
Seville V8-273 4.5L
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
DTC 36
DTC 36

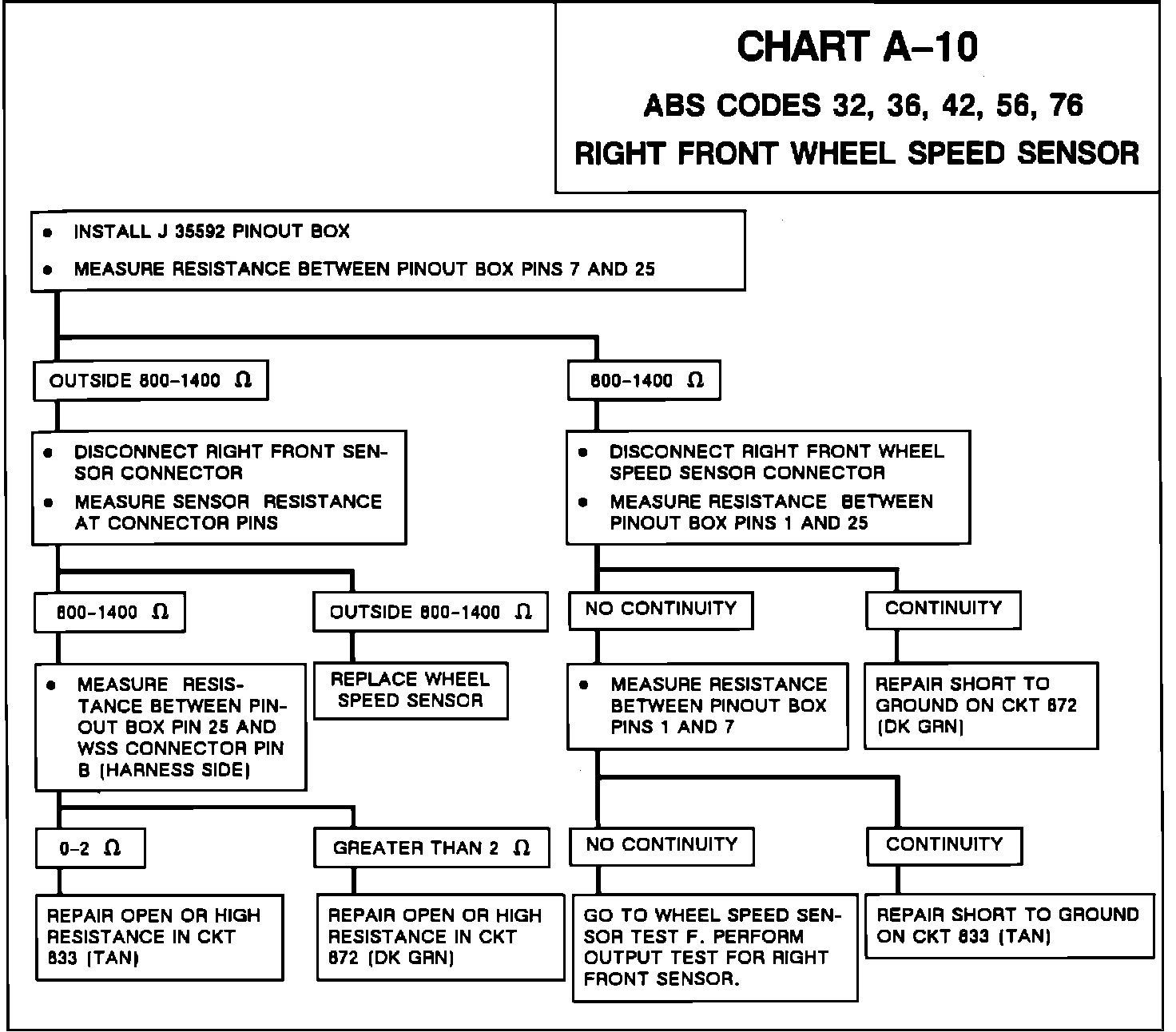

Fig. 22 Chart A-10, ABS Trouble Codes 32, 36, 42, 56 Or 76 (Right Front Wheel Speed Sensor):
