Power Window With Memory Seats
Power Window With Memory Seats

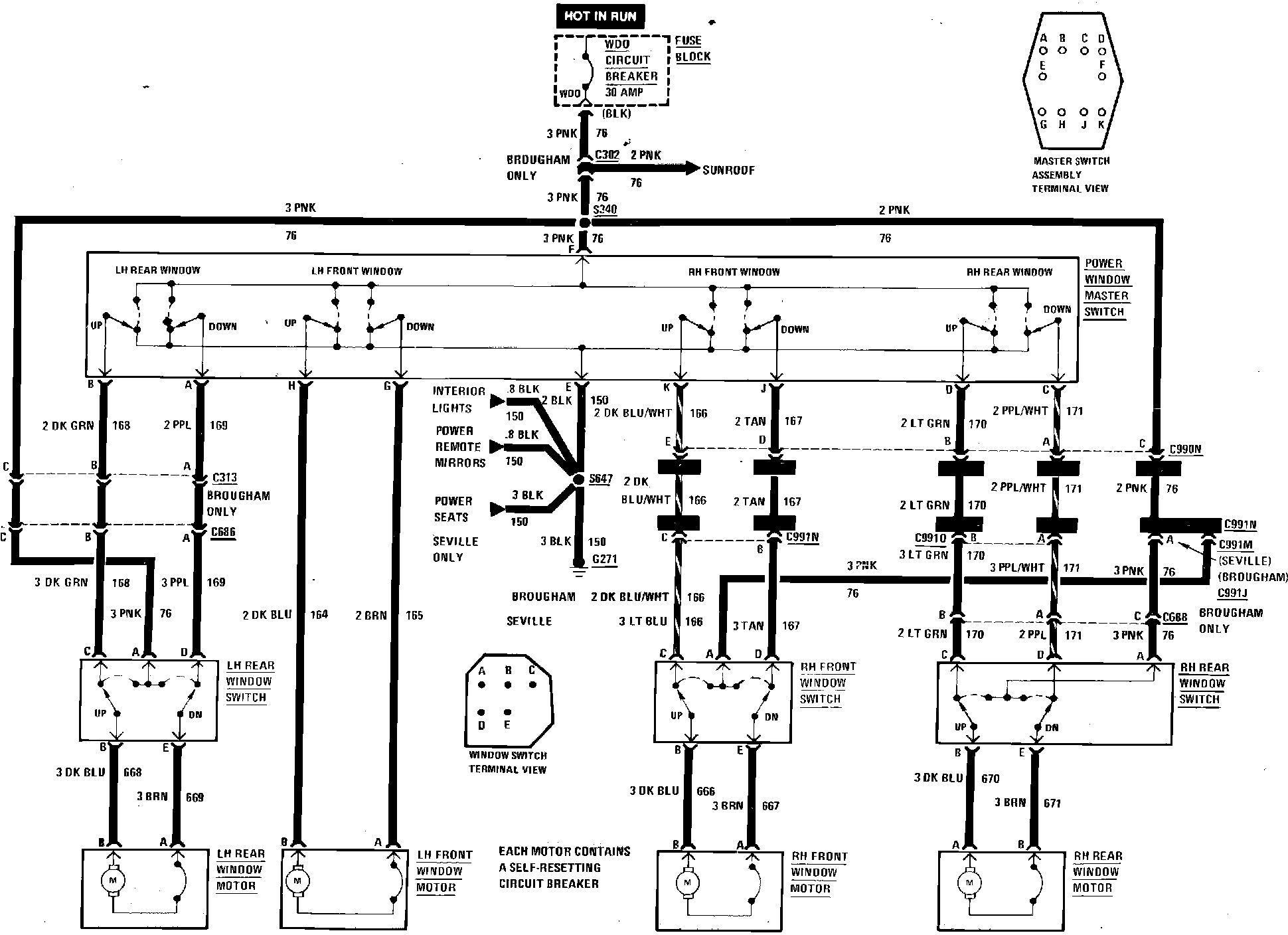

Power Window (With Memory Seats) Wiring Circuit:
