Accessory DC/AC Power Inverter Module (KI6 or KIU)
Accessory DC/AC Power Inverter Module (KI6 or KIU)
Component Connector End Views

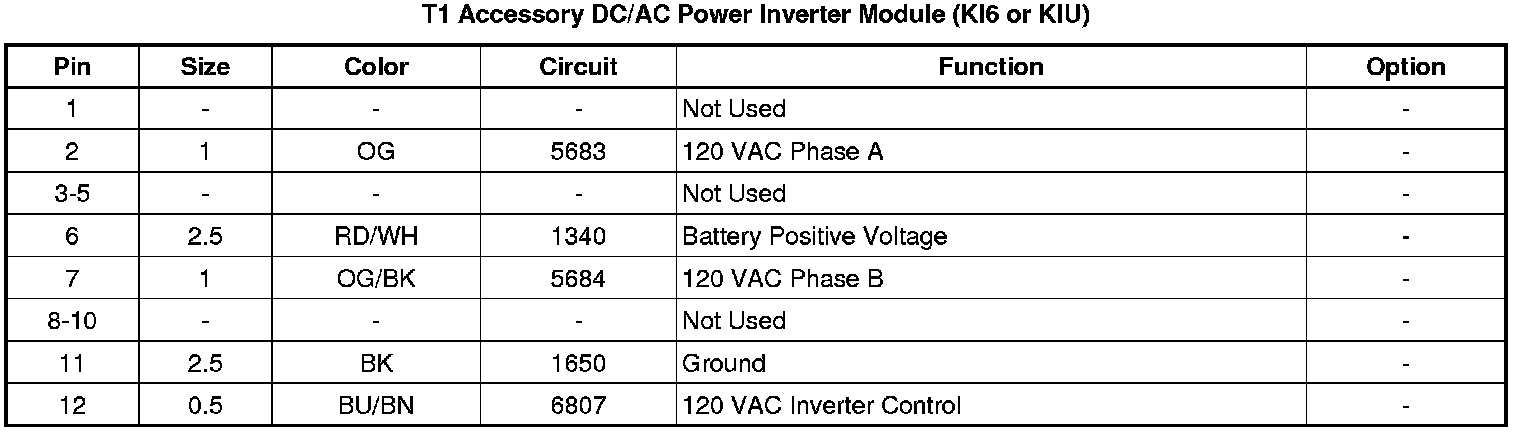

T1 Accessory DC/AC Power Inverter Module (KI6 or KIU)
