Crankshaft Balancer Installation

- Tools Required
- J 37096 Flywheel Holding Tool
- J 36660-A Torque Angle Meter

1. Lubricate the seal surface of the crankshaft balancer with engine oil.
2. Install the crankshaft balancer.

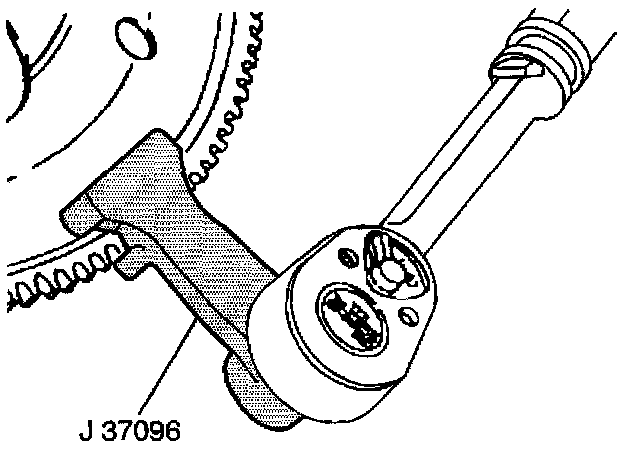

3. Use J 37096 to hold the flywheel.

Notice:
- Refer to Special Fastener Notice in Service Precautions.
- Refer to Fastener Notice in Service Precaution.
- Properly align the crankshaft balancer keyway with the crankshaft key before installation. Damage can occur during installation to the crankshaft balancer, crankshaft and/or the installation tool if the components are not properly aligned.





4. Install the crankshaft balancer bolt.
Tighten the crankshaft balancer bolt to 150 Nm (111 ft. lbs.). Use J 36660-A to tighten the crankshaft balancer bolt an additional 76 degrees.
