T/C Clutch (TCC) Solenoid Replacement

Torque Converter Clutch (TCC) Solenoid Replacement

Removal Procedure





1. Remove the case side cover.
2. Disconnect the transaxle wiring harness.

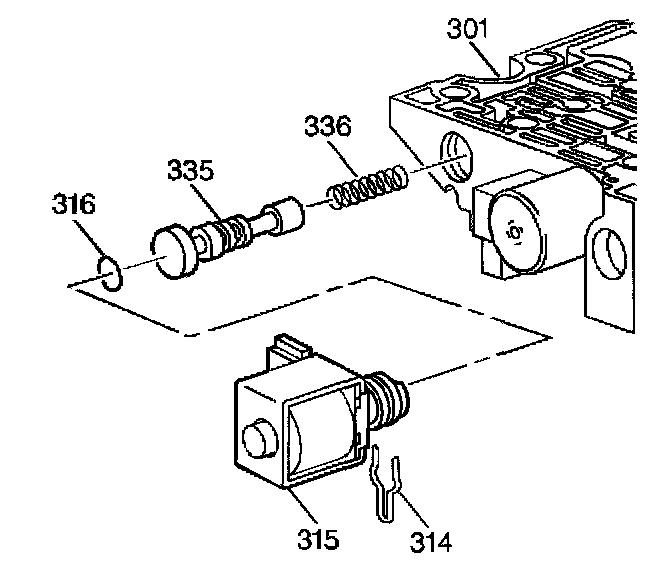

3. Remove the torque converter clutch solenoid (315).

Installation Procedure





1. Install the torque converter clutch solenoid (315).
2. Connect the transaxle wiring harness.
3. Install the case side cover.
