IGN 1 Fuse

Power Distribution - IGN 1 Fuse (60 Amp) (Part 1 Of 2):



Power Distribution - IGN 1 Fuse (60 Amp) (Part 2 Of 2):

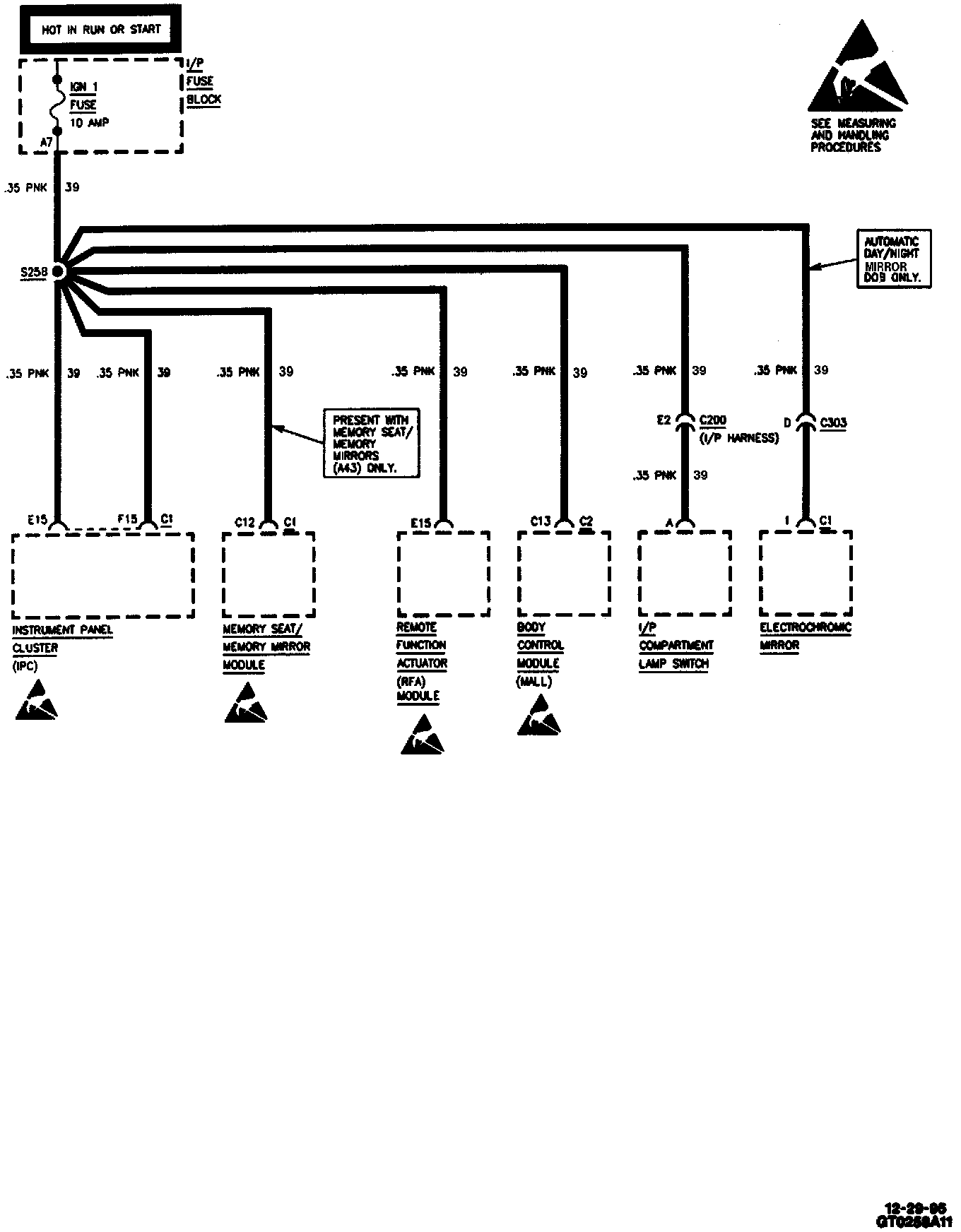

IGN 1 Fuse (10 Amp):
