Home >> Buick >> 1995 >> Park Avenue Ultra V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> Clean Ground

Clean Ground

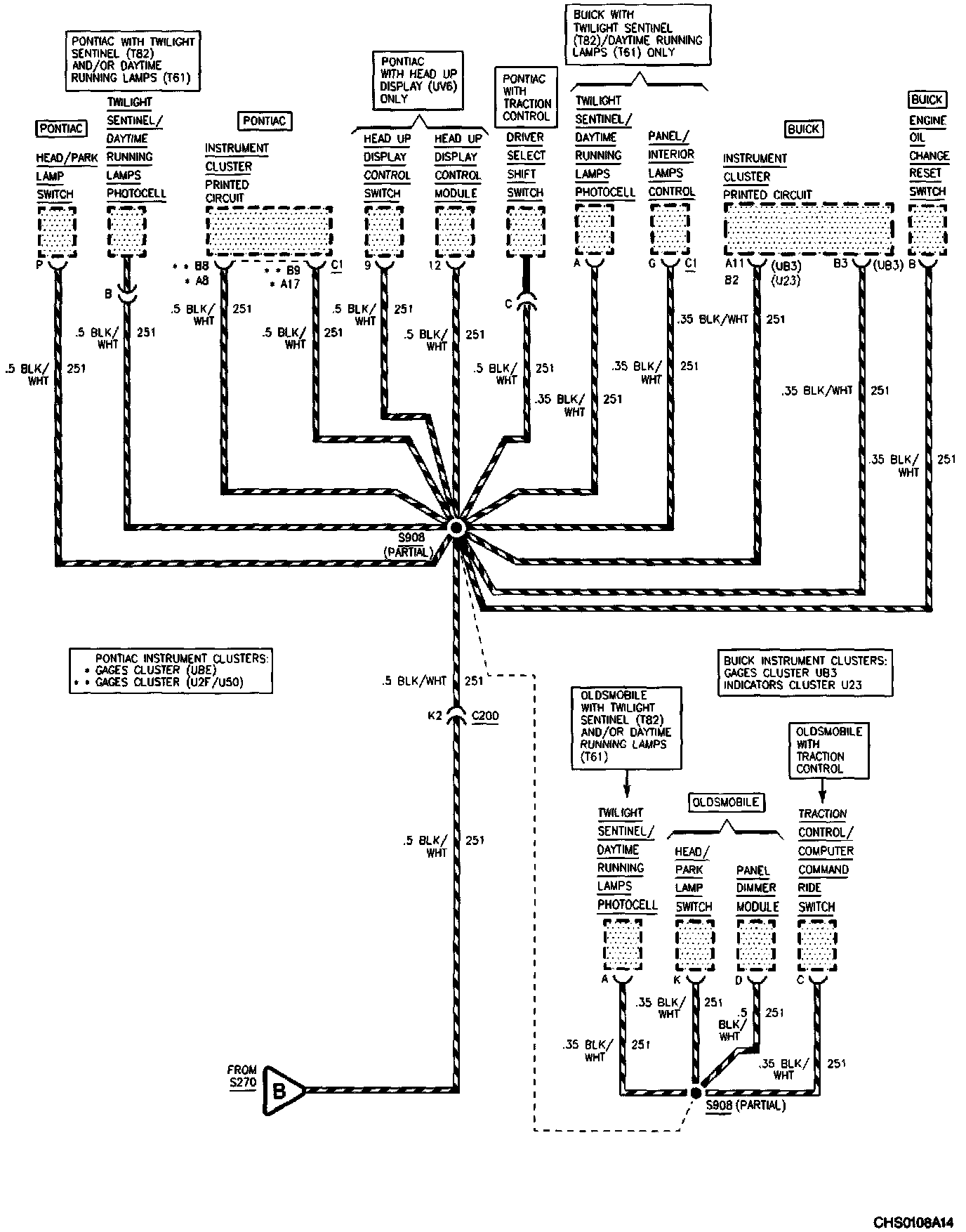

Clean Ground (Part 1 Of 4):




Clean Ground (Part 2 Of 4):




Clean Ground (Part 3 Of 4):




Clean Ground (Part 4 Of 4):
