Electrical Diagrams

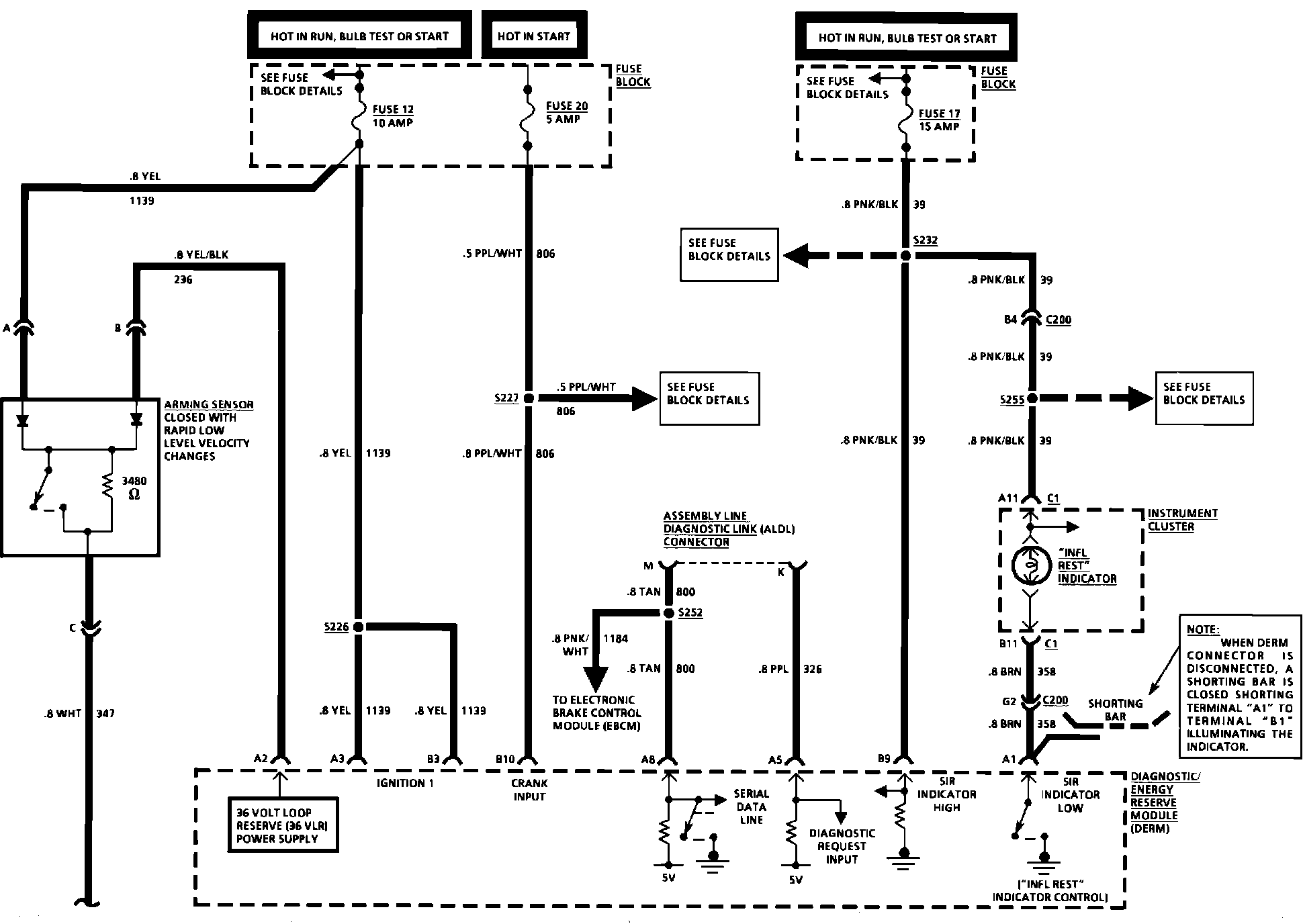

Supplemental Inflatable Restraint System:



Supplemental Inflatable Restraint System:



Supplemental Inflatable Restraint, SIR:



Supplemental Inflatable Restraint, SIR:
