Headlamp
>>
System Diagram
>>
Daytime Running Lamps (DRL)
Daytime Running Lamps (DRL)

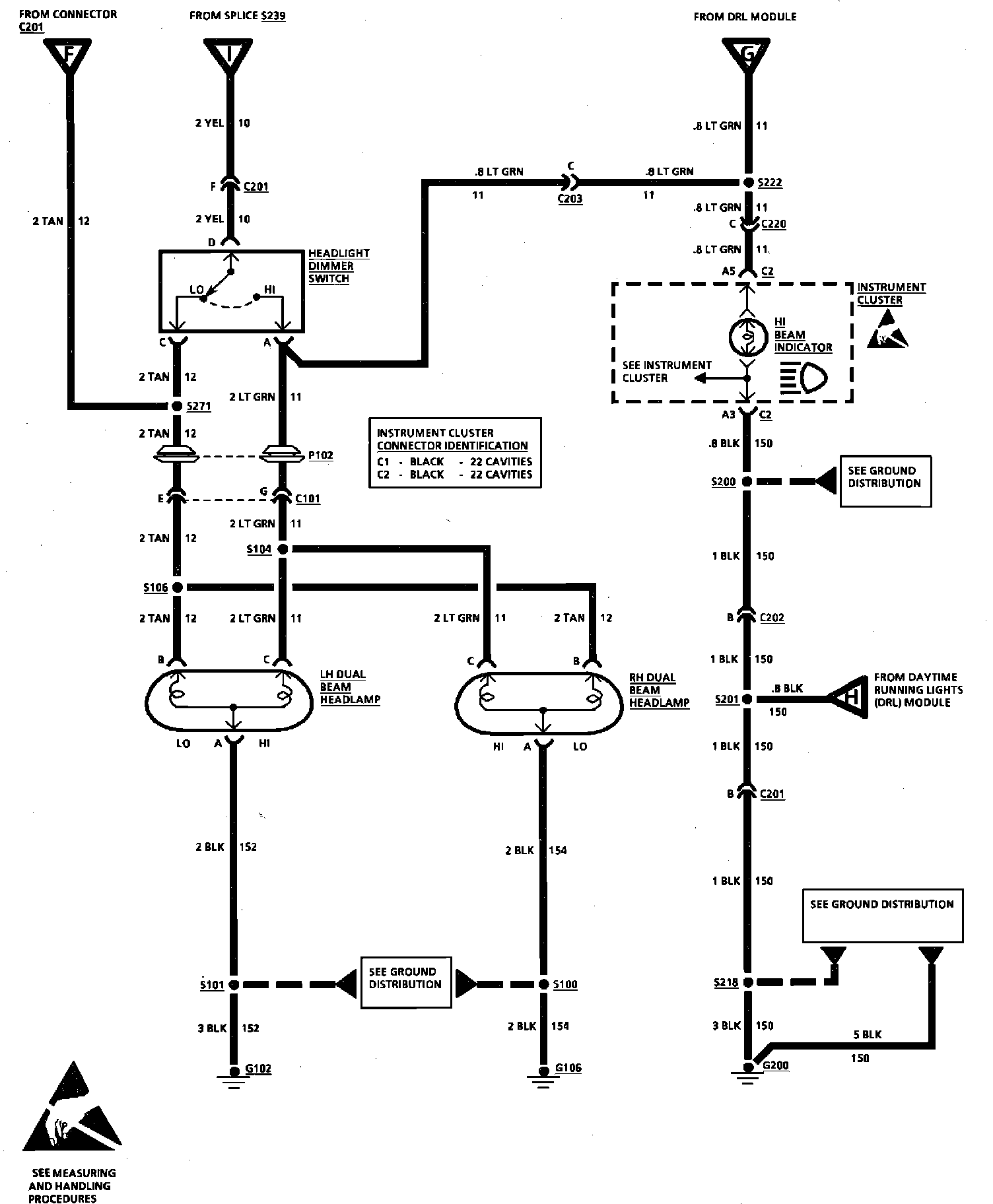

Headlamps (With Daytime Running Lamps):
Headlamps (With Daytime Running Lamps):
Headlamps (With Daytime Running Lamps):
