Home
>>
Buick
>>
1990
>>
Century L4-151 2.5L VIN R TBI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Power and Ground Distribution
>>
System Diagram
>>
Ground Distribution
>>
G305 and G306
G305 and G306

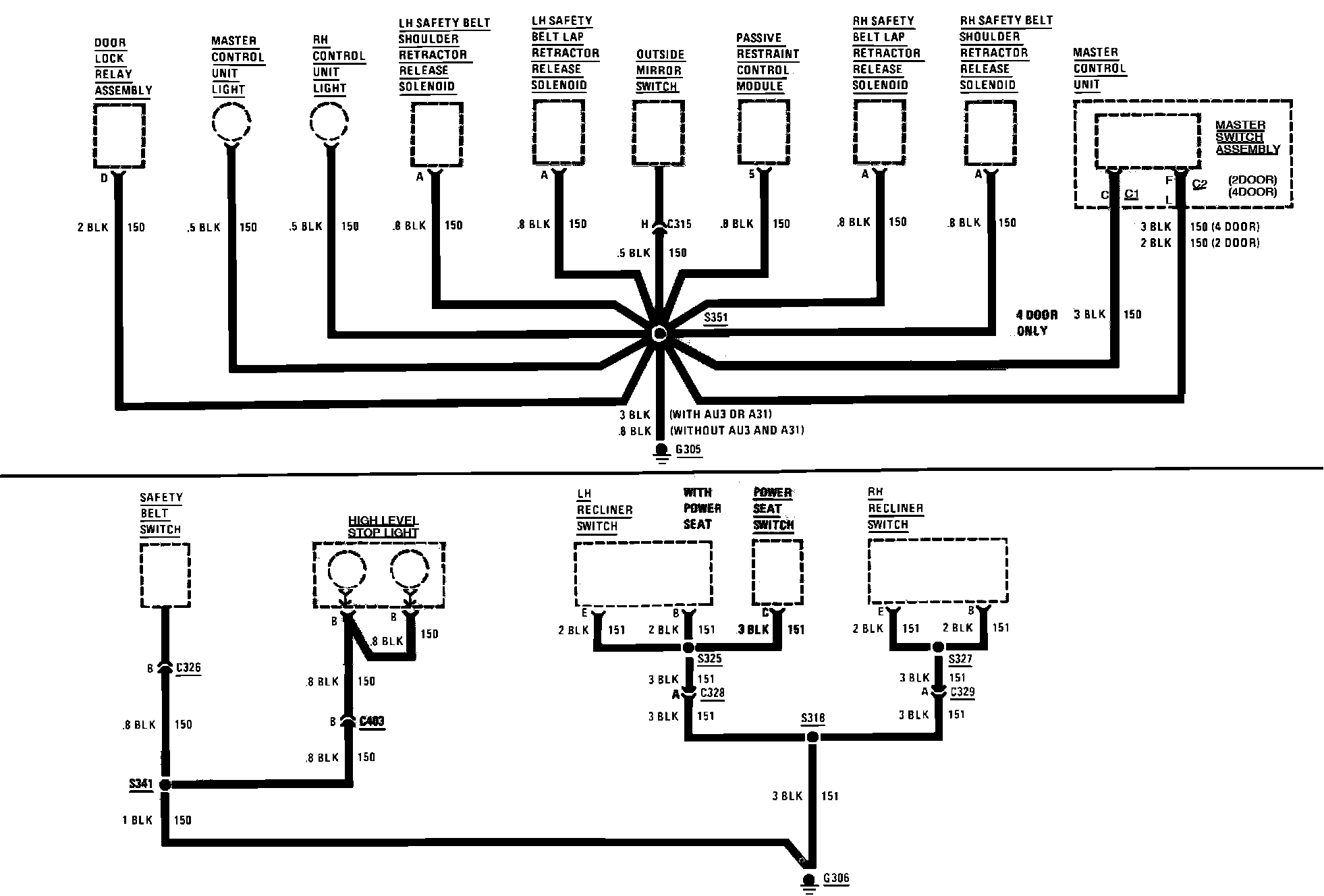

Ground Distribution. G305 & G306:
