Home >> Buick >> 1987 >> LeSabre V6-231 3.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> System Diagram >> Power Distribution Wiring Circuit >> Electra, Part 1 of 3

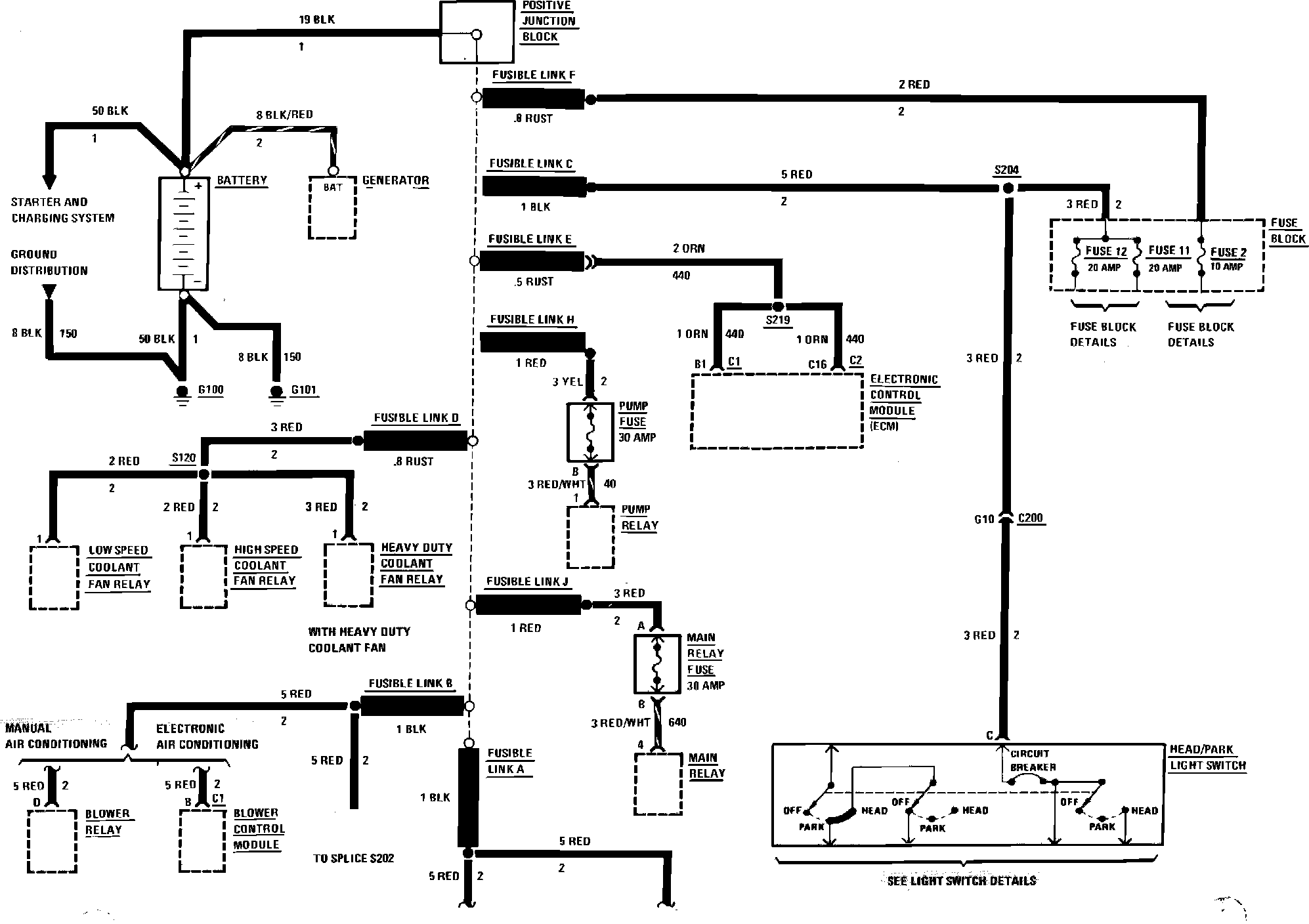

Electra, Part 1 of 3

Power Distribution:
