Instrument Panel, Gauges and Warning Indicators
>>
Clock
>>
With AM/FM, Stereo & ETR
With AM/FM, Stereo & ETR

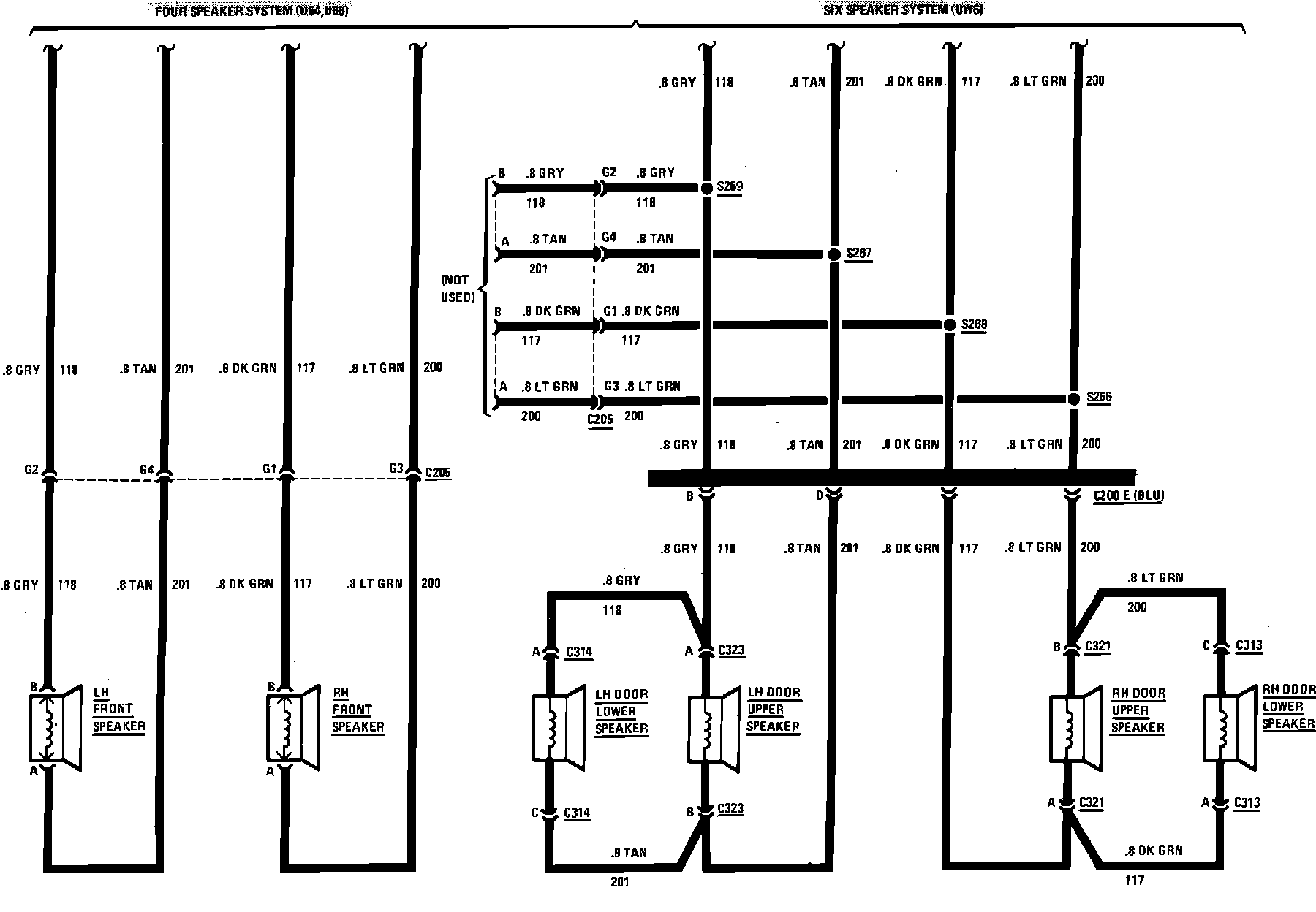

Radio & Digital Clock Wiring Circuit (Part 1 Of 2) With AM/FM, Stereo & ETR:
Radio & Digital Clock Wiring Circuit (Part 2 Of 2) With AM/FM, Stereo & ETR:
