Courtesy Lamp
>>
System Diagram
>>
Courtesy/Dome/Reading Lesabre Two Door
Courtesy/Dome/Reading Lesabre Two Door

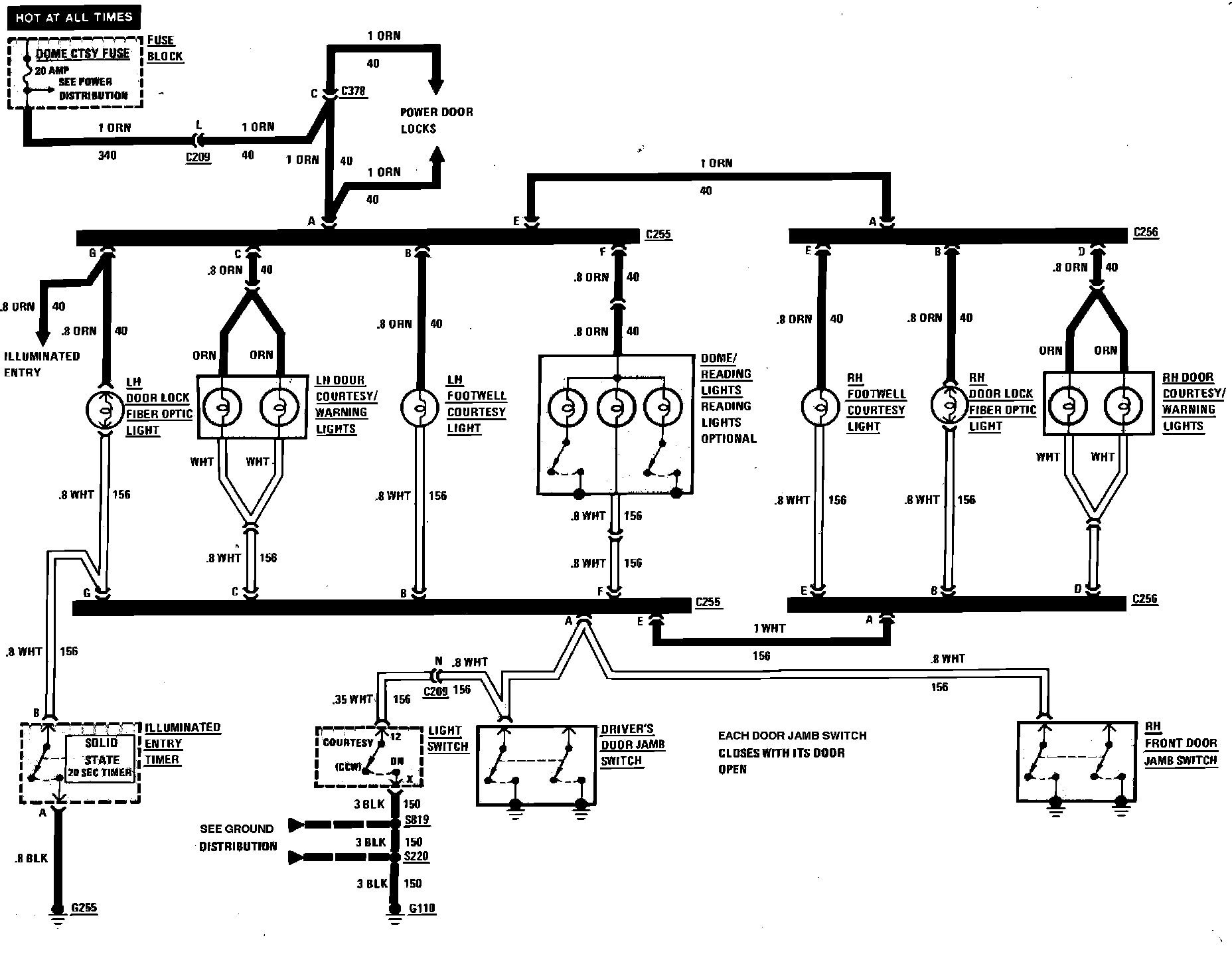

Interior Lighting (Courtesy/Dome/Reading) Wiring Circuit, Two Door:
