Home >> BMW >> 2008 >> M3 Sedan (E90) V8-4.0L (S65) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Turn Signals

Turn Signals

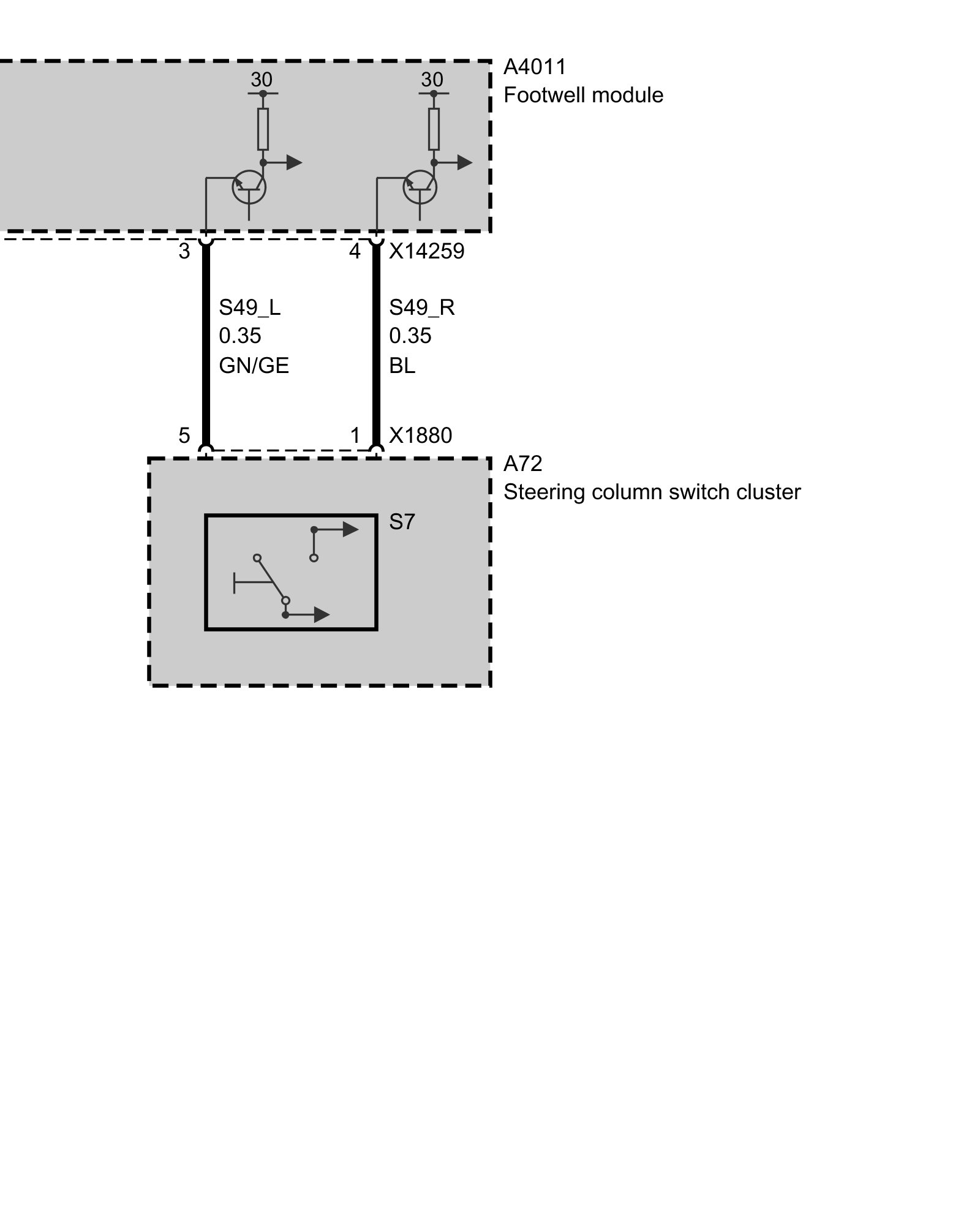

Turn Signal Indicator

Up to 09/08





















As of 09/08
